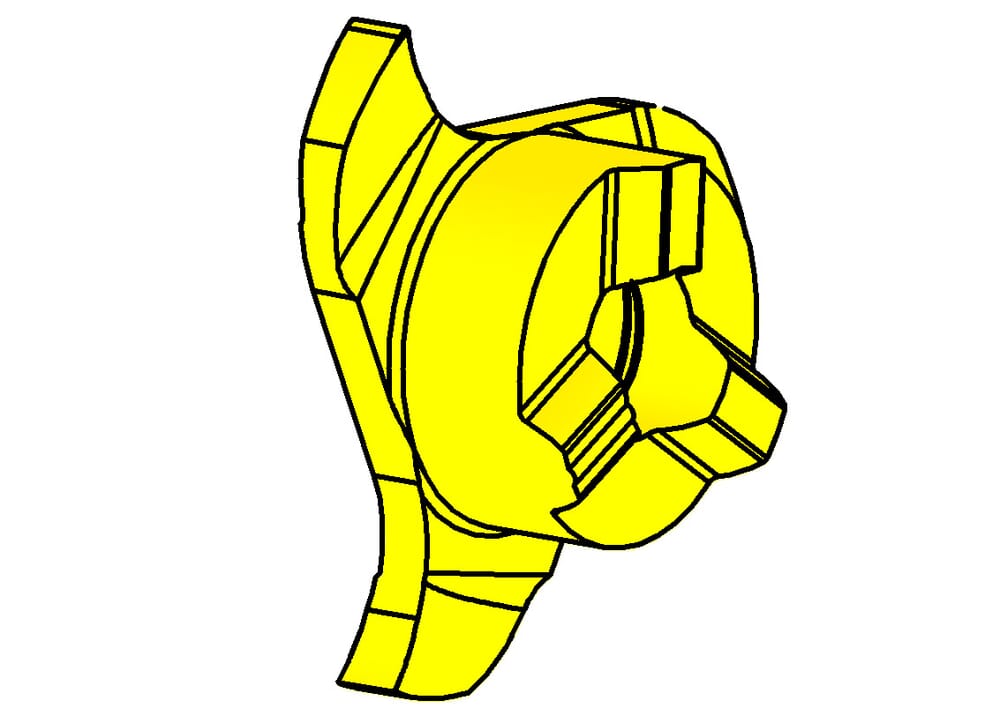

308_0130_00_AS45-PICTO.TIF

308_0130_00_AS45-PICTO.TIF

308013000.TIF

308.0130.00 AS45

Insert

VOLLRADIUS_NUT.EPS

TRENNFRAESEN.EPS

ZAEHNEZAHL_Z3.EPS

Part number 308013000AS45

HORN Insert 308.0130.00 AS45 for Milling

Please note:Technical instructions

Cutting diameter (Ds)

15.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN308080$84R$$$$$

Katalog_SSC

308080R

Width of groove (w)

1.41 mm

Maximum milling depth/ depth of groove (tmax)

3.5 mm

Nominal range (Nw)

1.3 mm

Cutting insert thickness, setting length complete (s)

4.5 mm

Downloads
308_0130_00_AS45-ISO.XML	Download
308_0130_00_AS45-DXF.DXF	Download
308_0130_00_AS45-STP.STP	Download
308_0130_00_AS45-DIN.XML	Download
Download all files
