308.1325.01 TA45
Insert
Part number 308132501TA45

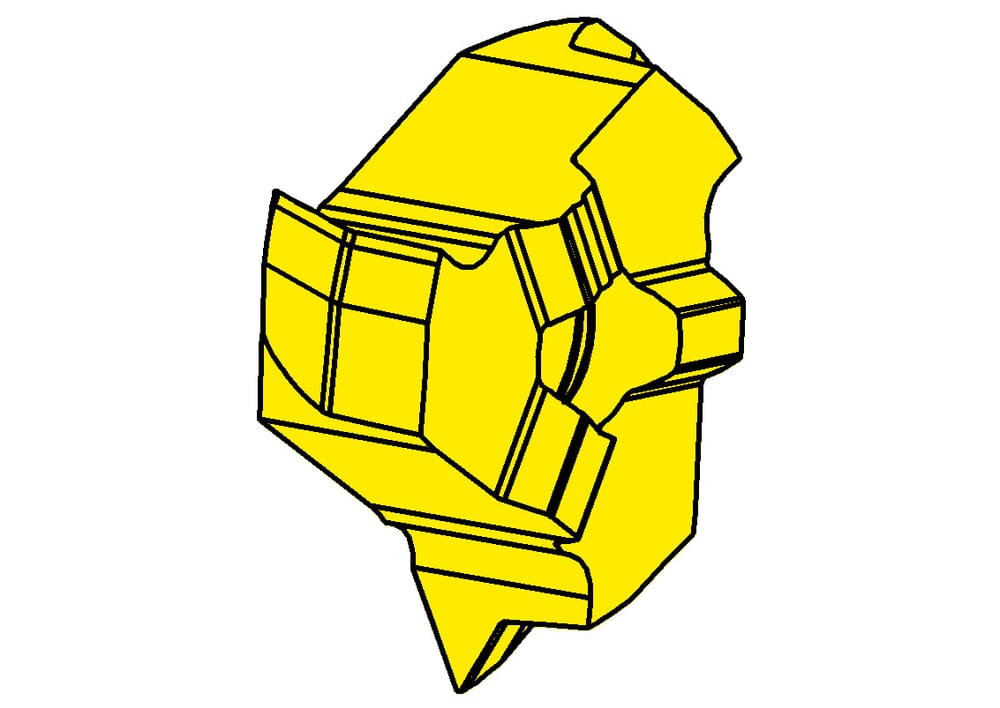

HORN Insert 308.1325.01 TA45 for Gewinden
Please note:Technical instructions

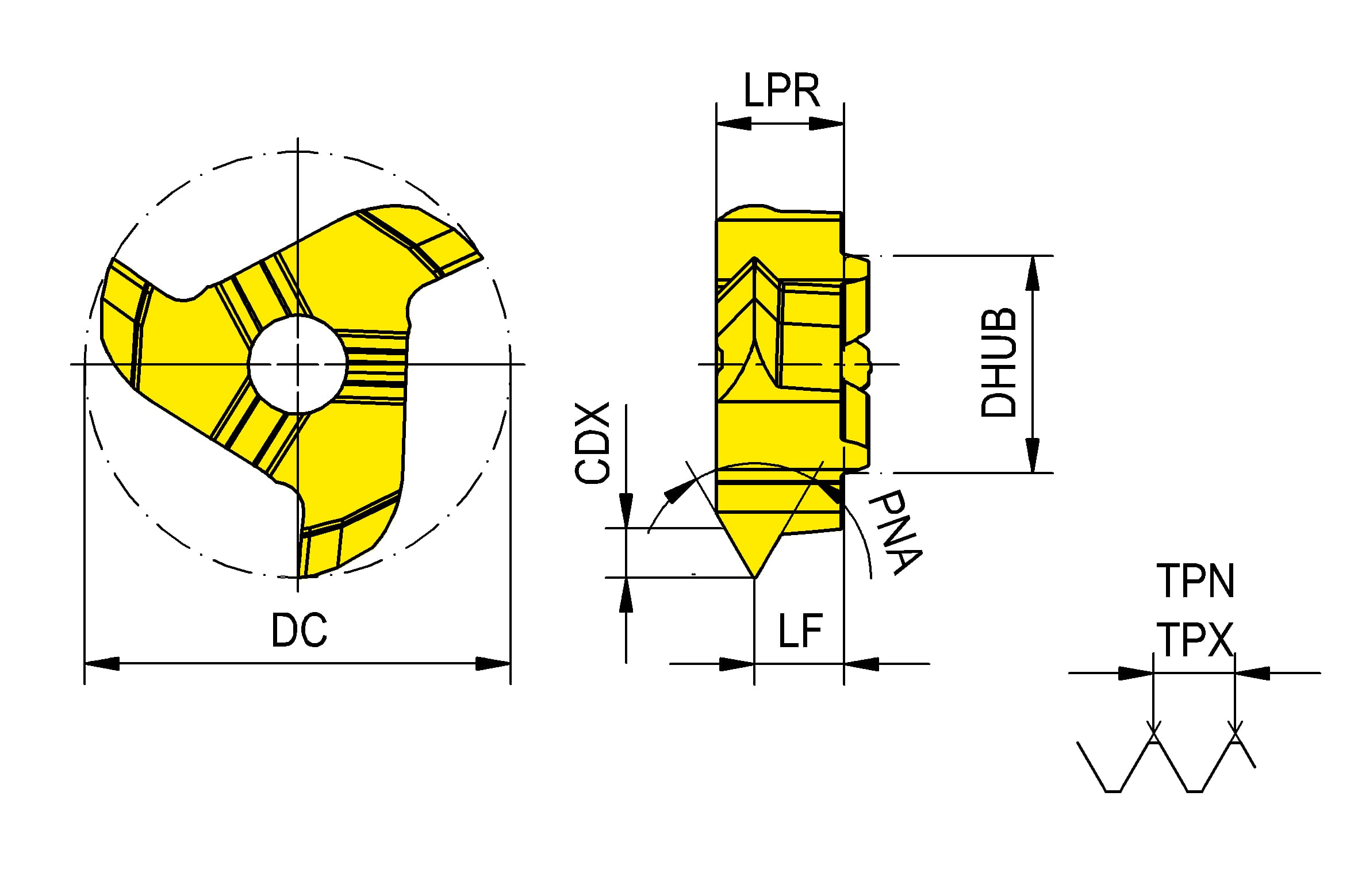

Profile included angle (PNA)
60 °
Thred pitch maximum (TPX)
2.5 mm
Thread pitch minimum (TPN)
2.5 mm
Protruding length (LPR)
4.7 mm
Functional length (LF)
3.3 mm
hub diameter (DHUB)
8 mm
Cutting diameter (DC)
13.2 mm
Cutting depth maximum (CDX)
1.6 mm
| Downloads | |
|---|---|
| 308_1325_01_TA45-DXF.DXF | Download |
| 308_1325_01_TA45-ISO.XML | Download |
| 308_1325_01_TA45-STP.STP | Download |
| 308_1325_01_TA45-DIN.XML | Download |
| Download all files | |
