311.0720.01 TN35
Inserts
Part number 311072001TN35

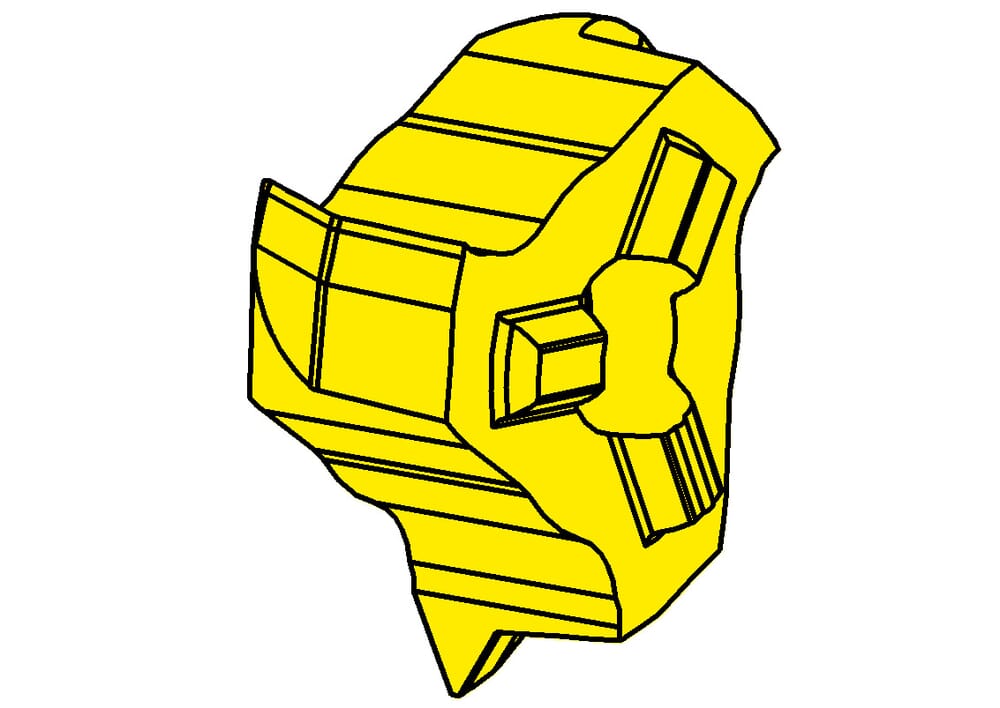

HORN Inserts 311.0720.01 TN35 for Gewinden
Please note:Technical instructions
Profile included angle (PNA)
60 °
Thred pitch maximum (TPX)
2 mm
Thread pitch minimum (TPN)
1 mm
Protruding length (LPR)
5.95 mm
Functional length (LF)
4.6 mm
hub diameter (DHUB)
9 mm
Cutting diameter (DC)
17.7 mm
Cutting depth maximum (CDX)
1.3 mm
