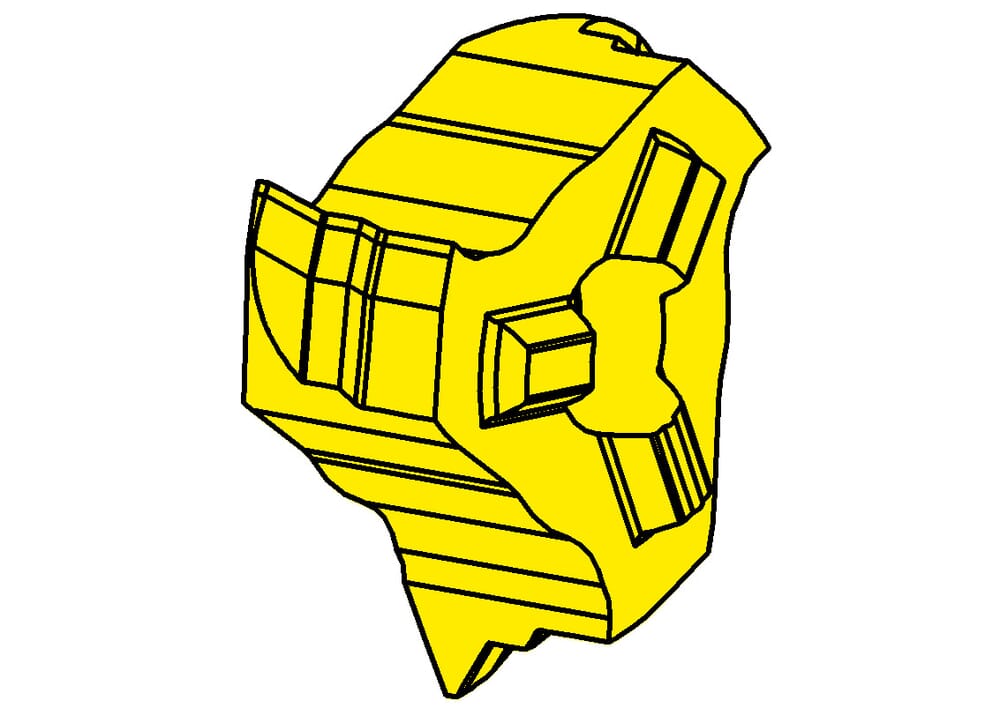

311.1020.02 TN35
Inserts
Part number 311102002TN35
HORN Inserts 311.1020.02 TN35 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
17.7 mm
number-of-teeth
3 St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
Katalog_SSC
311090R
Setting length (E)
4.6 mm
Cutting insert height, Cutting insert thickness (s)
5.95 mm
Pitch (P)
2 mm
| Downloads | |
|---|---|
| 311_1020_02_TN35-ISO.XML | Download |
| 311_1020_02_TN35-DXF.DXF | Download |
| 311_1020_02_TN35-STP.STP | Download |
| 311_1020_02_TN35-DIN.XML | Download |
| Download all files | |
