311.1325.02 AS45
insert
Part number 311132502AS45

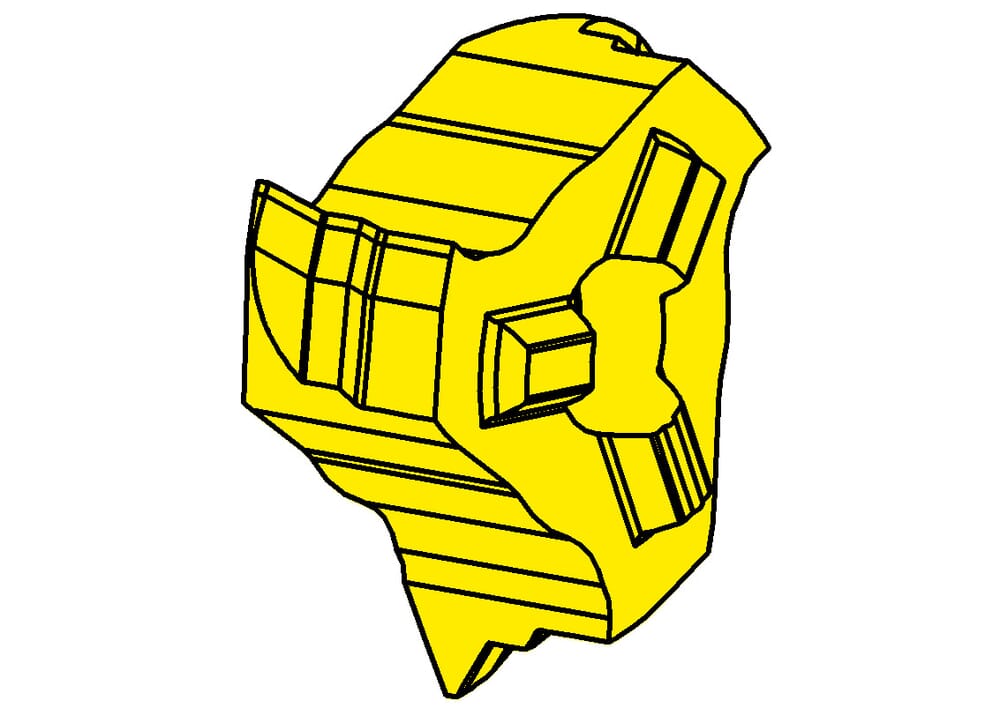

HORN insert 311.1325.02 AS45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
17.7
mm
number-of-teeth
3
St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Setting length (E)
4.4
mm
Cutting insert height, Cutting insert thickness (s)
5.95
mm
Pitch (P)
2.5
mm
| Downloads | |
|---|---|
| 311_1325_02_AS45-DXF.DXF | Download |
| 311_1325_02_AS45-STP.STP | Download |
| 311_1325_02_AS45-DIN.XML | Download |
| Download all files | |
