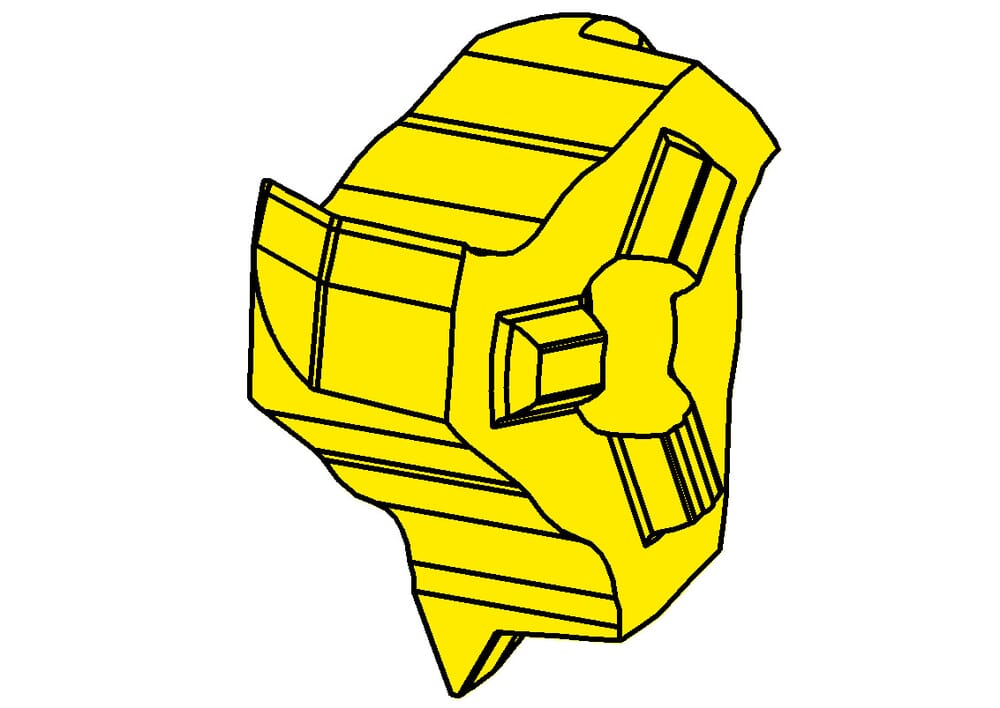

311.1630.01 AS45
Insert
Part number 311163001AS45
HORN Insert 311.1630.01 AS45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
17.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Setting length (E)
4.3
mm
Cutting insert height, Cutting insert thickness (s)
5.95
mm
Pitch (P)
3
mm
Maximum pitch (Pmax)
3
mm
| Downloads | |
|---|---|
| 311_1630_01_AS45-DXF.DXF | Download |
| 311_1630_01_AS45-STP.STP | Download |
| 311_1630_01_AS45-DIN.XML | Download |
| Download all files | |
