311.5514.02 AS45
insert
Part number 311551402AS45

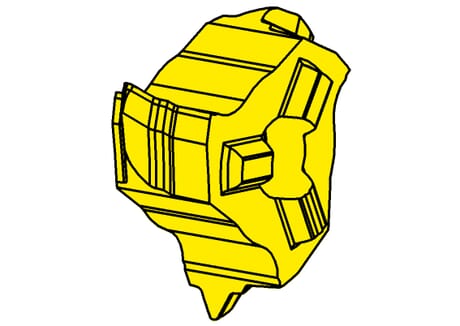

HORN insert 311.5514.02 AS45 for Gewinden
Please note:Technical instructions
Profile included angle (PNA)
55 °
Threads per inch max. (TPIX)
14
Threads per inch min. (TPIN)
14
Protruding length (LPR)
5.95 mm
Functional length (LF)
4.35 mm
hub diameter (DHUB)
9 mm
Cutting diameter (DC)
17.7 mm
Cutting depth maximum (CDX)
1.18 mm
