312.0044.15 EG35
Insert
Part number 312004415EG35

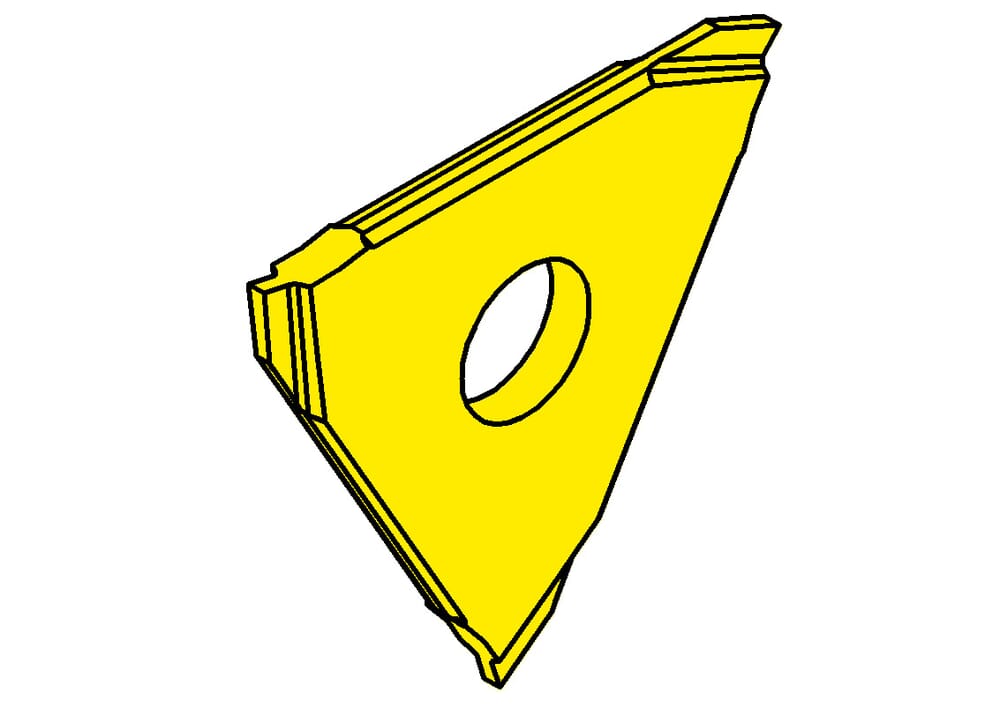

HORN Insert 312.0044.15 EG35 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
0.7 mm
ISO_SSC
HORN-31201$000N$$$$$
Katalog_SSC
31201N
Plating seat size (Größe)
1
Width of groove (w)
0.44 mm
Nominal range (Nw)
0.4 mm
Cutting insert width (s)
1.5 mm
eclass-shortcut
21-18-20-01
| Downloads | |
|---|---|
| 312_0044_15_EG35-ISO.XML | Download |
| 312_0044_15_EG35-DIN.XML | Download |
| 312_0044_15_EG35-DXF.DXF | Download |
| 312_0044_15_EG35-STP.STP | Download |
| Download all files | |
