312.0080.00 K10
Inserts
Part number 312008000K10

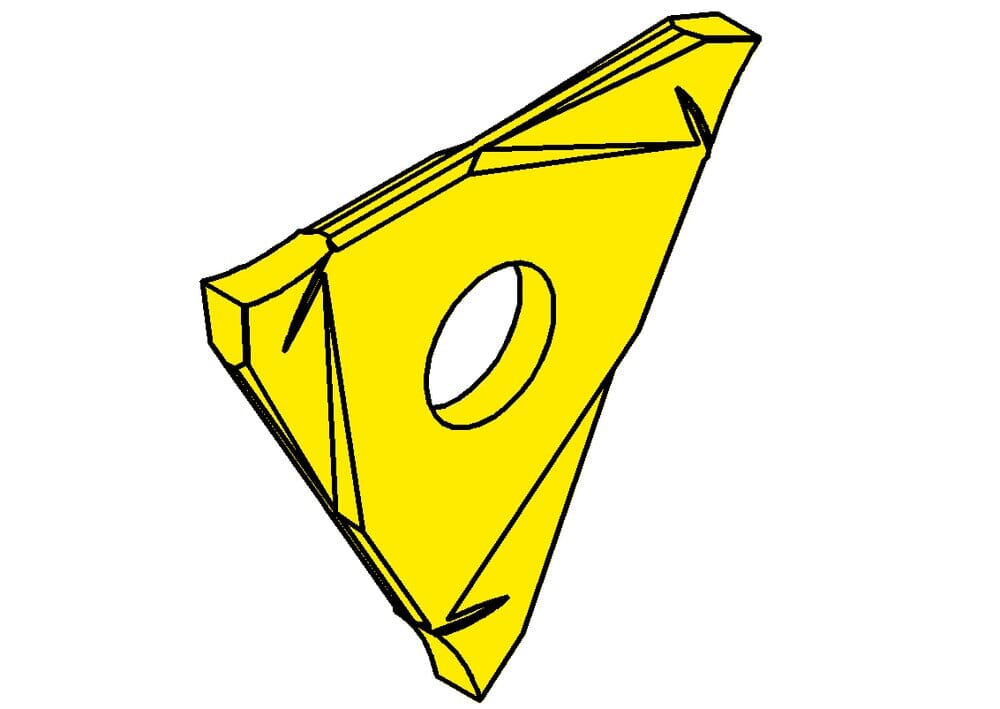

HORN Inserts 312.0080.00 K10 for Turning
Please note:Technical instructions
Wide retaining ring (RTRG)
0.8 mm
inscribed circle diameter (IC)
13 mm
insert width (W1)
0.7 mm
Functional length (LF)
0.78 mm
Cutting width (CW)
0.86 mm
| Downloads | |
|---|---|
| 312_0080_00_K10-DXF.DXF | Download |
| 312_0080_00_K10-STP.STP | Download |
| 312_0080_00_K10-ISO.XML | Download |
| 312_0080_00_K10-DIN.XML | Download |
| Download all files | |
