313.0014.28 TN35
Inserts
Part number 313001428TN35

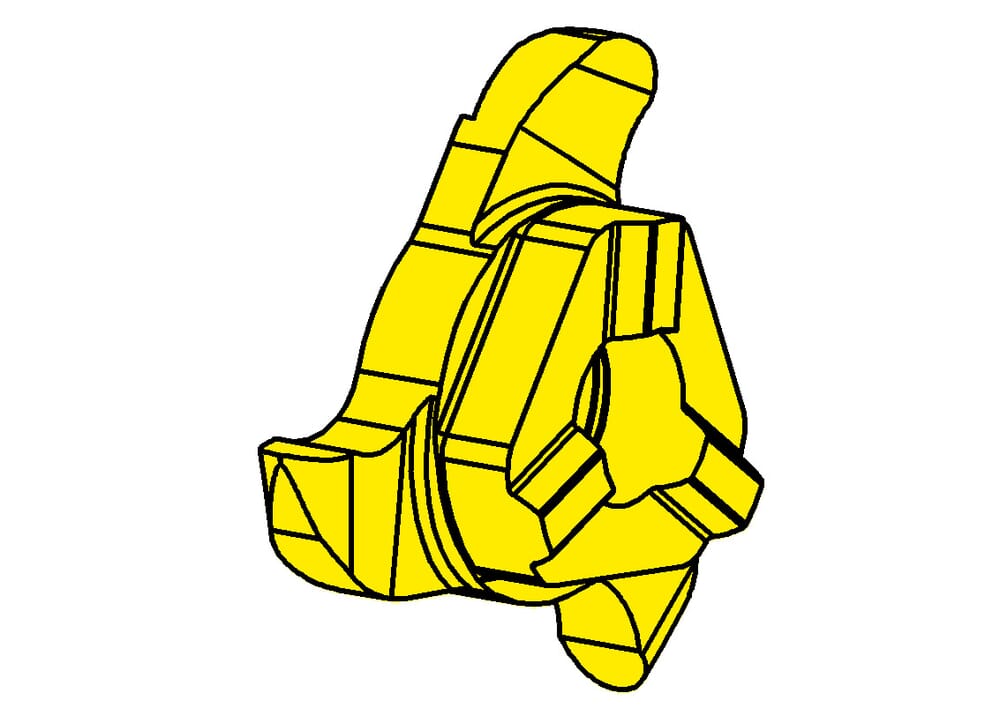

HORN Inserts 313.0014.28 TN35 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
plating-seat-size
0
Width of groove (w)
2.8
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Radius, full-radius (r)
1.4
mm
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| 313_0014_28_TN35-ISO.XML | Download |
| 313_0014_28_TN35-DXF.DXF | Download |
| 313_0014_28_TN35-STP.STP | Download |
| 313_0014_28_TN35-DIN.XML | Download |
| Download all files | |
