313.0090.00 EG55

insert

Part number 313009000EG55

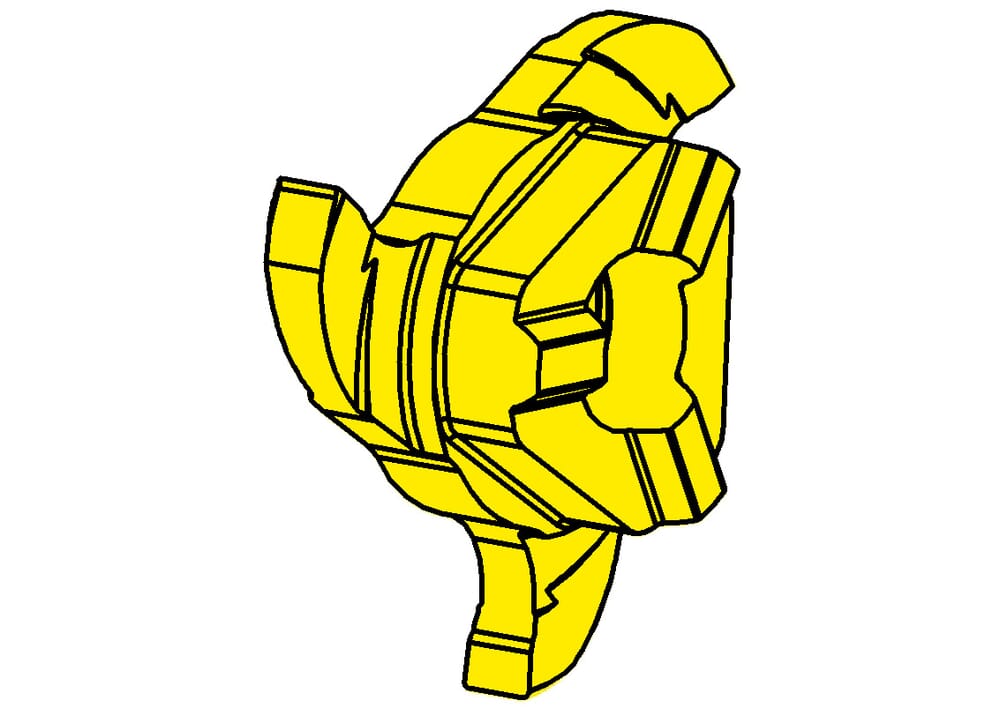

HORN insert 313.0090.00 EG55 for Milling

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

5.6 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Nominal range (Nw)

0.9 mm

Maximum milling depth/ depth of groove (tmax)

1.9 mm

Width of groove (w)

0.97 mm

Katalog_SSC

313113R

DIN_SSC

HORN31311384R

ISO_SSC

HORN313113$84R$$$$$

eclass-shortcut

21-18-20-11

Number of teeth (Z)

3 St.

Cutting diameter (Ds)

21.7 mm
