313.0265.40 TI25
Inserts
Part number 313026540TI25

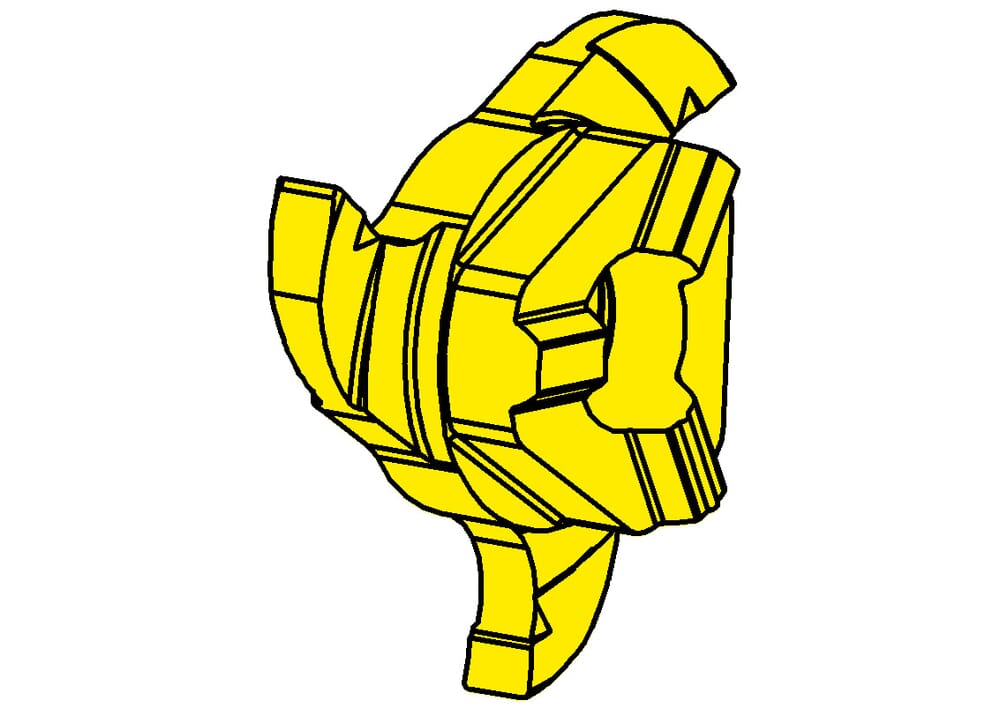

HORN Inserts 313.0265.40 TI25 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Nominal range (Nw)
2.65
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Width of groove (w)
2.76
mm
Katalog_SSC
313113R
DIN_SSC
HORN31311384R
ISO_SSC
HORN313113$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
21.7
mm
| Downloads | |
|---|---|
| 313026540_20230112_142615987.STP | Download |
| 313026540_20210625_151213885.DXF | Download |
| Download all files | |
