313.0415.40 TI25

Inserts

Part number 313041540TI25

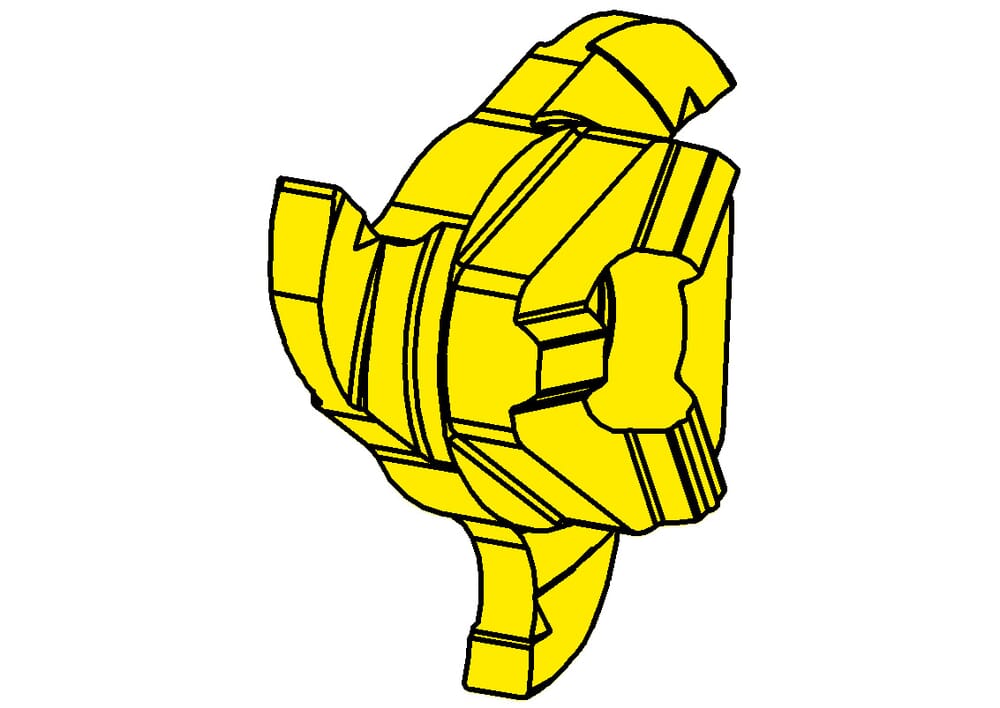

HORN Inserts 313.0415.40 TI25 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

4.26 mm

Maximum milling depth/ depth of groove (tmax)

4.5 mm

Nominal range (Nw)

4.15 mm

Cutting insert thickness, setting length complete (s)

5.7 mm

Corner radius (r)

0.2 mm

eclass-shortcut

21-18-20-11
