313.0600.00 TN35

Insert

Part number 313060000TN35

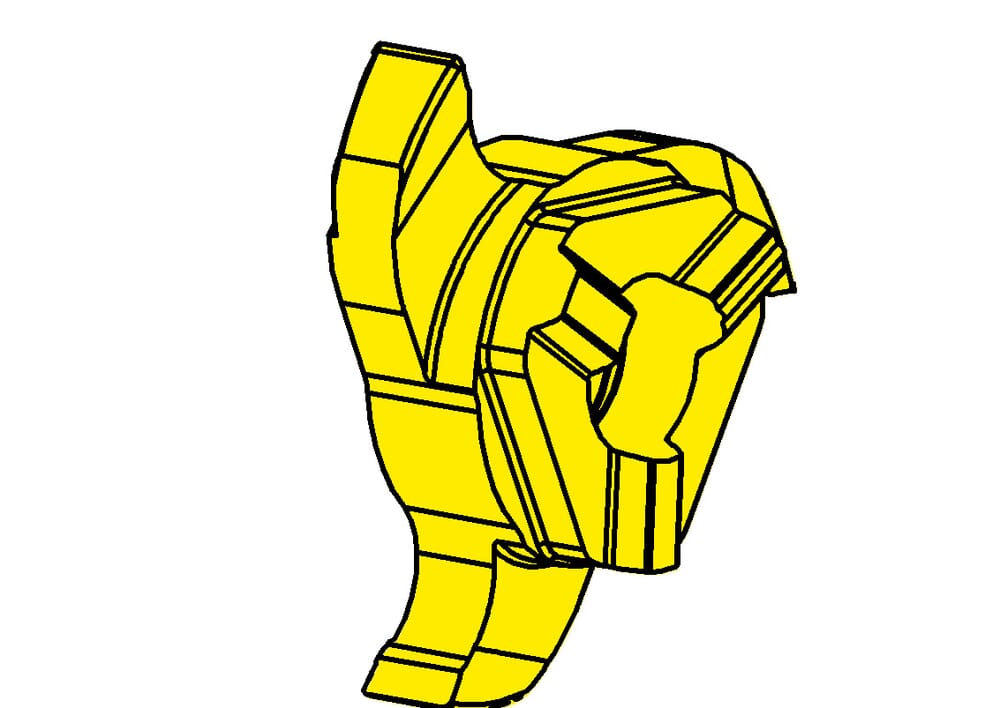

HORN Insert 313.0600.00 TN35 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

plating-seat-size

Width of groove (w)

6 mm

Maximum milling depth/ depth of groove (tmax)

4.5 mm

Cutting insert thickness, setting length complete (s)

6.9 mm

Corner radius (r)

0.2 mm

eclass-shortcut

21-18-20-11
