313.1219.1.00 RC45

Insert

Part number 3131219100RC45

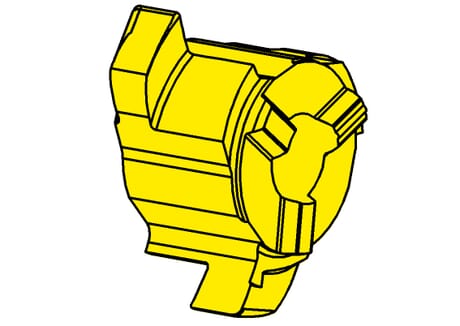

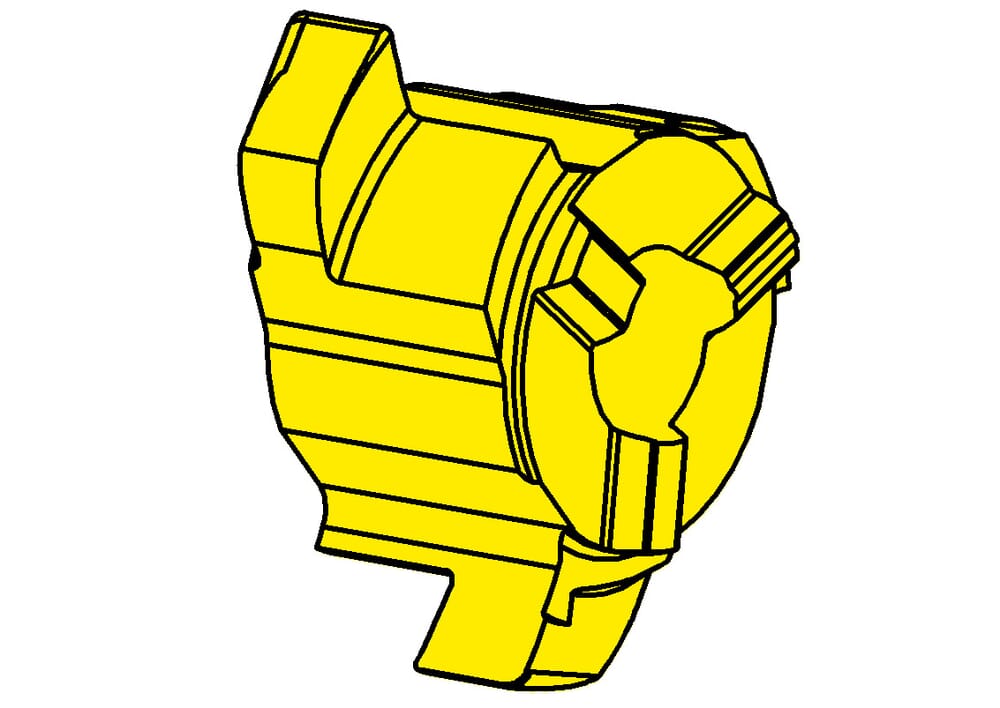

HORN Insert 313.1219.1.00 RC45 for Milling

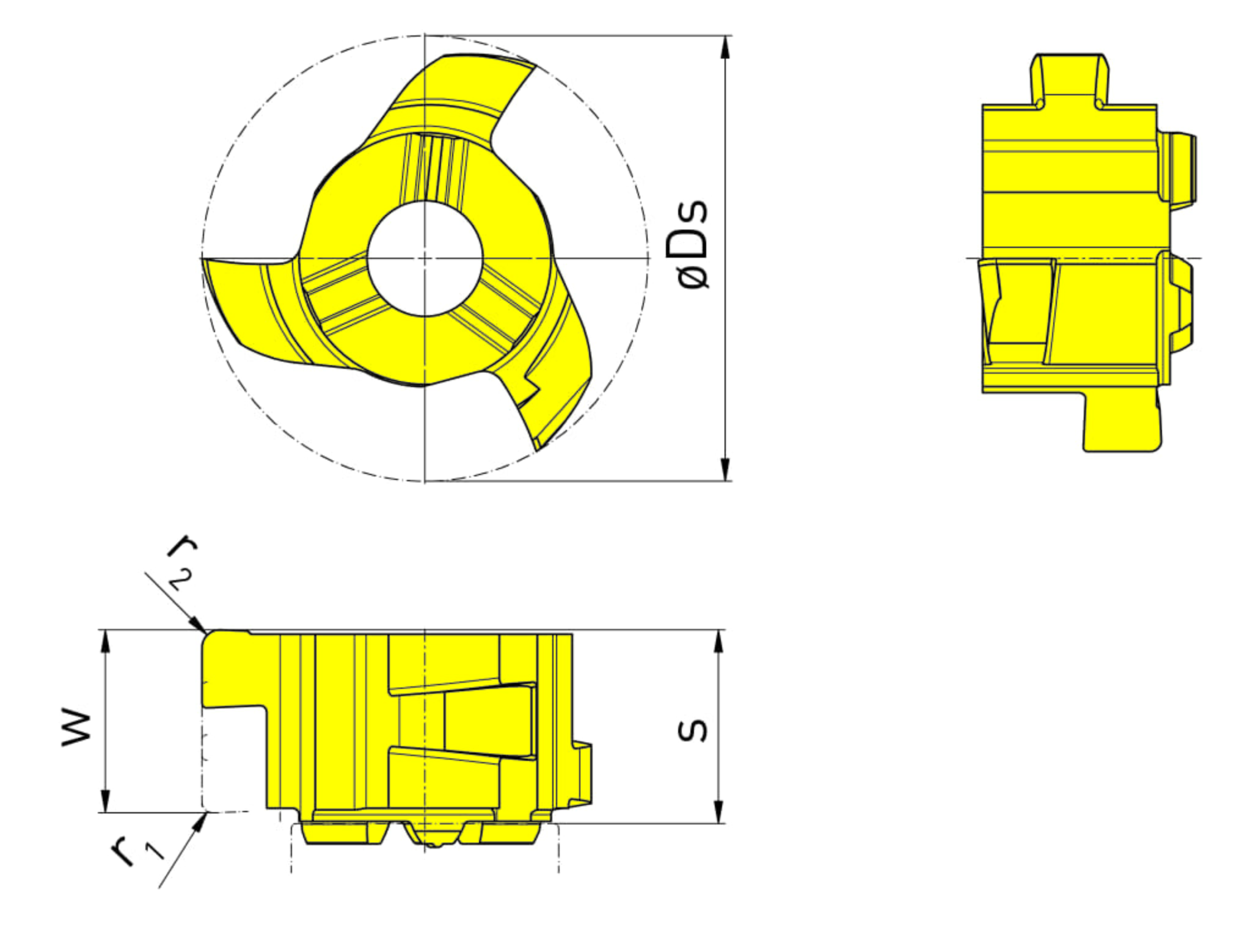

Cutting diameter (Ds)

20 mm

Number of teeth (Z)

1 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

8.2 mm

Cutting insert thickness, setting length complete (s)

8.7 mm

Corner radius top (r1)

0.5 mm

Corner radius bottom (r2)

0.8 mm

Size of groove (a)

12 mm
