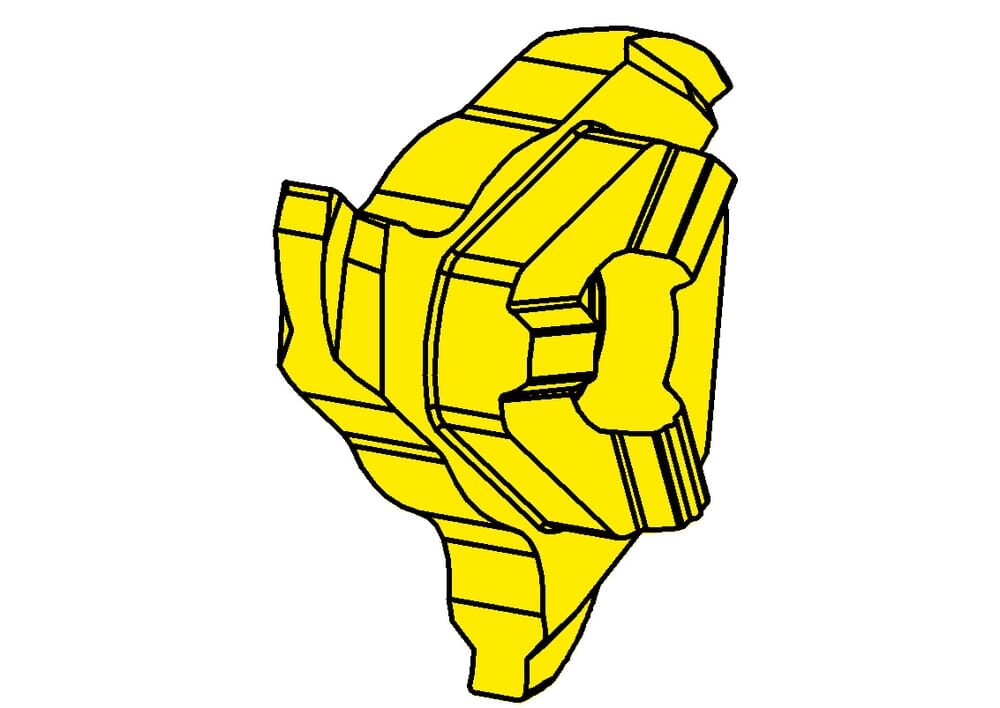

313.1610.35 TN35

Inserts

Part number 313161035TN35

HORN Inserts 313.1610.35 TN35 for Milling

ISO_SSC

HORN313113$84R$$$$$

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

5.07 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Nominal range (Nw)

1.6 mm

Milling depth without NAKF (t1)

0.95 mm

Maximum milling depth/ depth of groove (tmax)

1 mm

Width of groove (w)

1.71 mm

Katalog_SSC

313113R

DIN_SSC

HORN31311384R

eclass-shortcut

21-18-20-11

Number of teeth (Z)

3 St.

Cutting diameter (Ds)

21.7 mm
