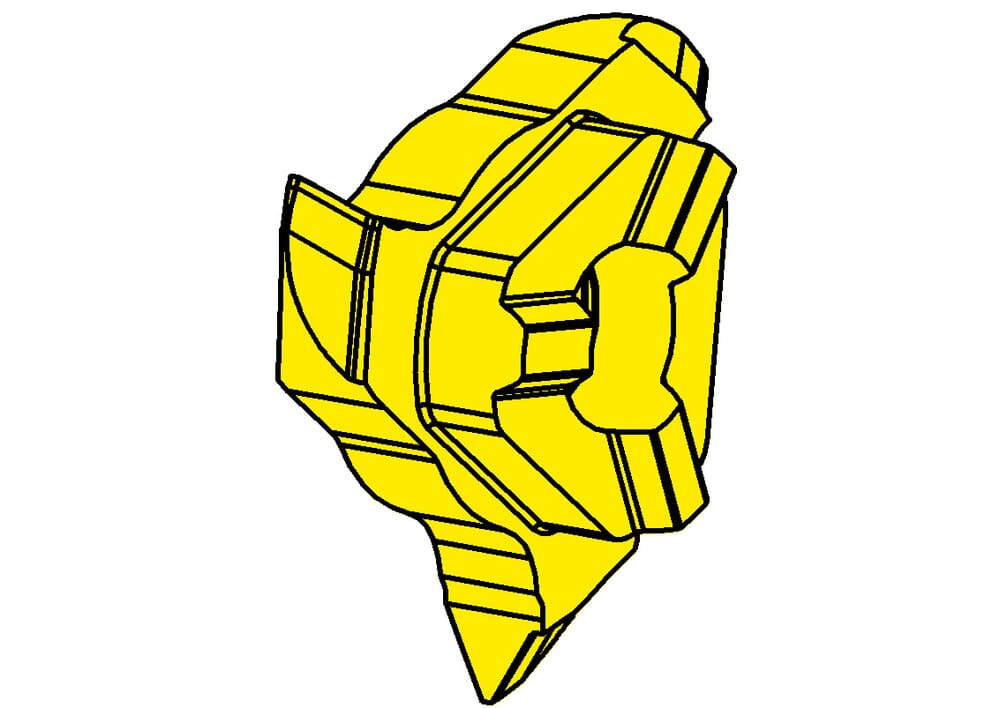

313.1835.01 AS45
Insert
Part number 313183501AS45
HORN Insert 313.1835.01 AS45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Setting length (E)
4.1
mm
Cutting insert height, Cutting insert thickness (s)
5.9
mm
Pitch (P)
3.5
mm
Maximum pitch (Pmax)
3.5
mm
| Downloads | |
|---|---|
| 313183501_20230112_145920036.STP | Download |
| 313183501.DXF | Download |
| Download all files | |
