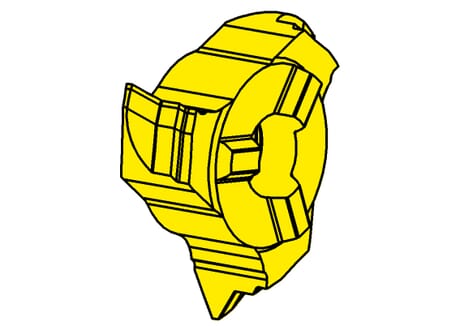

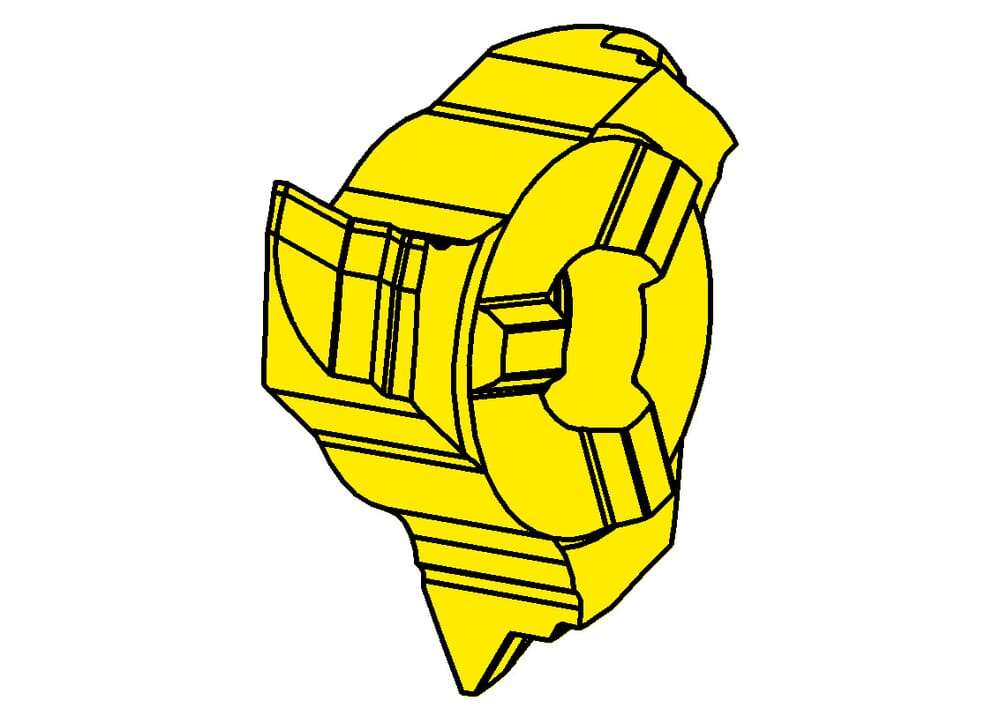

313.2140.02 TN35
Inserts
Part number 313214002TN35
HORN Inserts 313.2140.02 TN35 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
Setting length (E)
3.9
mm
Cutting insert height, Cutting insert thickness (s)
5.9
mm
Pitch (P)
4
mm
| Downloads | |
|---|---|
| 313_2140_02_TN35-ISO.XML | Download |
| 313_2140_02_TN35-DXF.DXF | Download |
| 313_2140_02_TN35-STP.STP | Download |
| 313_2140_02_TN35-DIN.XML | Download |
| Download all files | |
