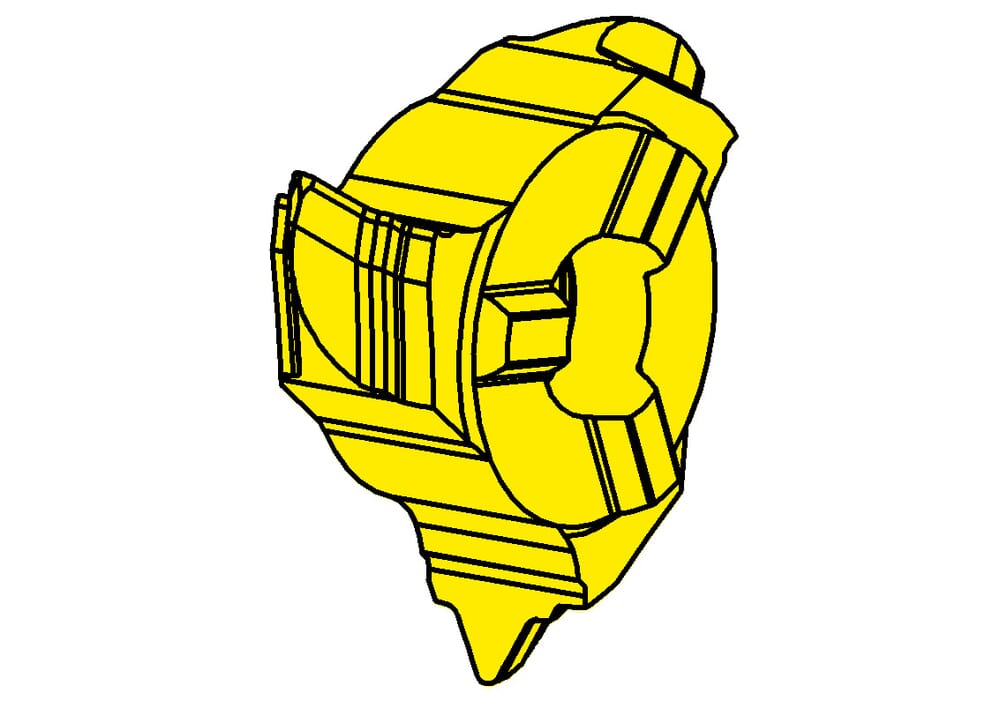

313.5506.02 AS45
Insert
Part number 313550602AS45
HORN Insert 313.5506.02 AS45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
3
St.
Threads per inch (TPI)
6
eclass-shortcut
21-18-20-11
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
Setting length (E)
3
mm
Cutting insert height, Cutting insert thickness (s)
5.9
mm
| Downloads | |
|---|---|
| 313_5506_02_AS45-DXF.DXF | Download |
| 313_5506_02_AS45-ISO.XML | Download |
| 313_5506_02_AS45-STP.STP | Download |
| 313_5506_02_AS45-DIN.XML | Download |
| Download all files | |
