328.0110.2.00 TI25
Inserts
Part number 3280110200TI25

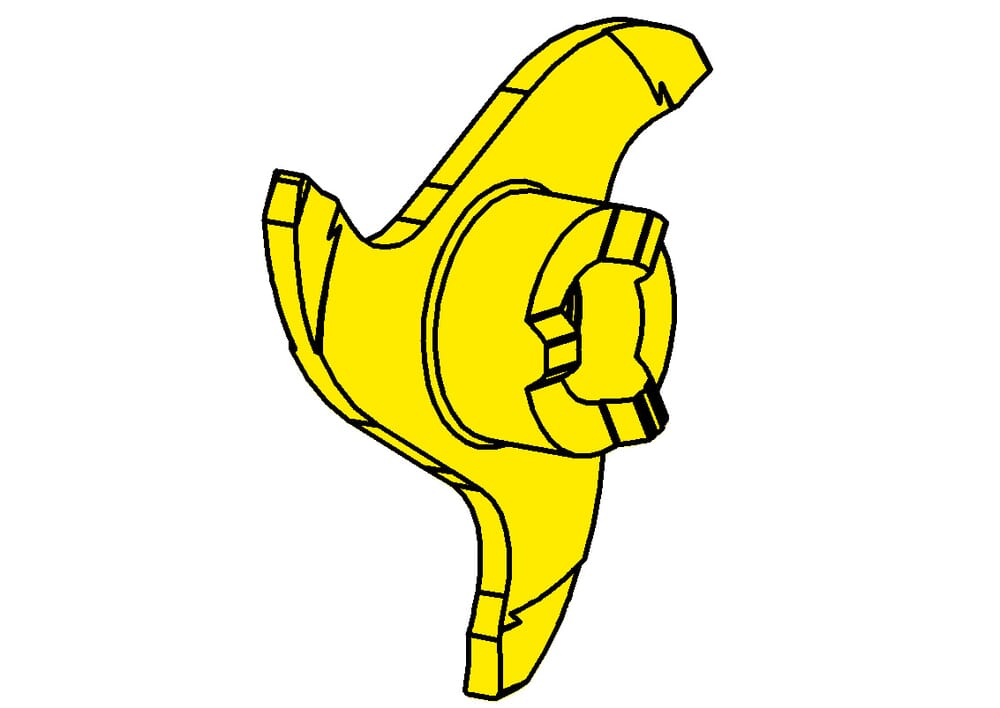

HORN Inserts 328.0110.2.00 TI25 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Maximum milling depth/ depth of groove (tmax)
9.3
mm
Width of groove (w)
1.1
mm
plating-seat-size
1
Katalog_SSC
328090R
DIN_SSC
HORN32809084R
ISO_SSC
HORN328090$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
28
mm
| Downloads | |
|---|---|
| 3280110200_20210630_120448894.STP | Download |
| 3280110200_20210625_135142937.DXF | Download |
| Download all files | |
