328.0150.2.00 AS45

Insert

Part number 3280150200AS45

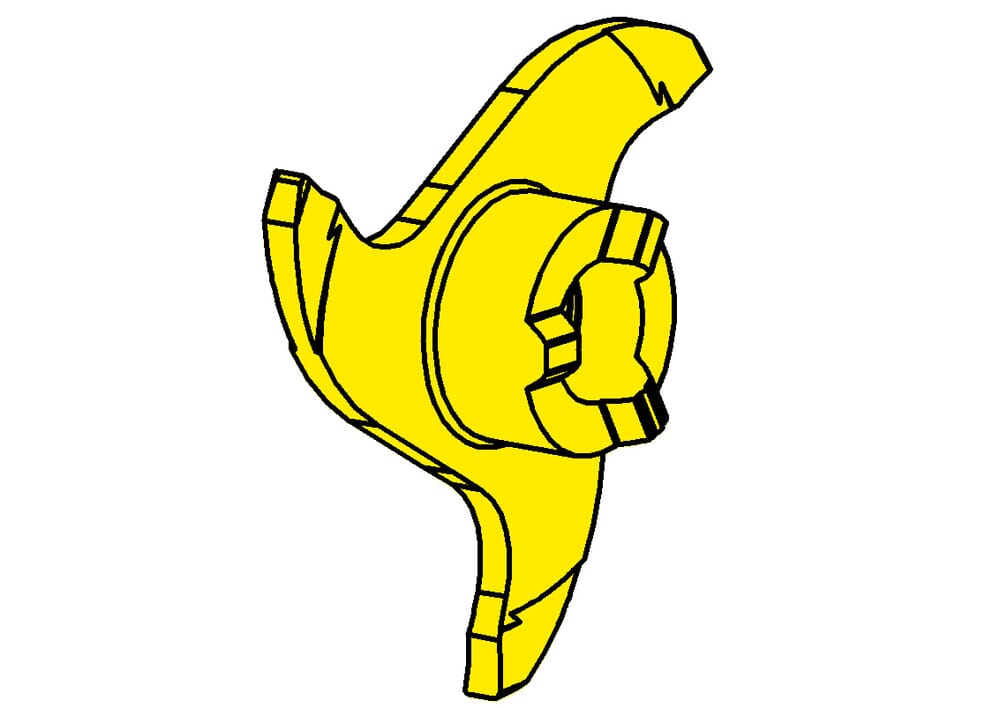

HORN Insert 328.0150.2.00 AS45 for Milling

Cutting diameter (Ds)

28 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN328090$84R$$$$$

Katalog_SSC

328090R

plating-seat-size

Width of groove (w)

1.5 mm

Maximum milling depth/ depth of groove (tmax)

9.3 mm

Cutting insert thickness, setting length complete (s)

5.7 mm

Corner radius (r)

0.2 mm

eclass-shortcut

21-18-20-11
