328.0160.2.00 TI25
Inserts
Part number 3280160200TI25

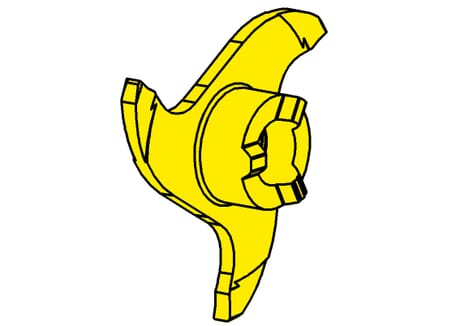

HORN Inserts 328.0160.2.00 TI25 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Maximum milling depth/ depth of groove (tmax)
9.3
mm
Width of groove (w)
1.6
mm
plating-seat-size
1
Katalog_SSC
328090R
DIN_SSC
HORN32809084R
ISO_SSC
HORN328090$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
28
mm
| Downloads | |
|---|---|
| 3280160200_20230112_142343391.STP | Download |
| 3280160200_20210625_152415148.DXF | Download |
| Download all files | |
