328.0200.2.00 TI25
Inserts
Part number 3280200200TI25

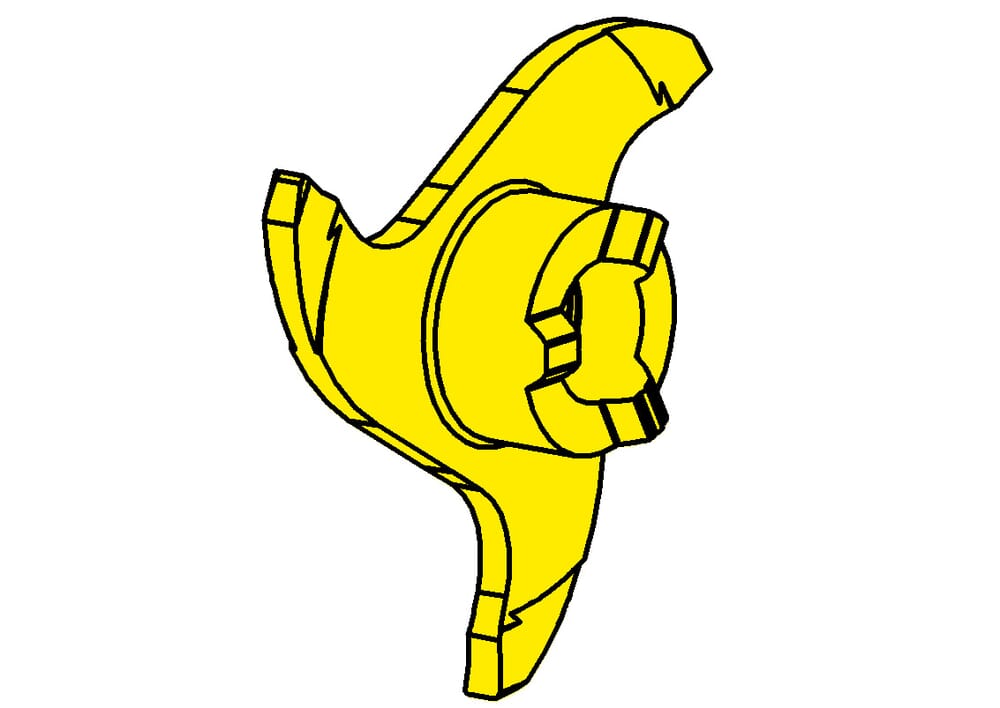

HORN Inserts 328.0200.2.00 TI25 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Maximum milling depth/ depth of groove (tmax)
9.3
mm
Width of groove (w)
2
mm
plating-seat-size
1
Katalog_SSC
328090R
DIN_SSC
HORN32809084R
ISO_SSC
HORN328090$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
28
mm
| Downloads | |
|---|---|
| 3280200200_20230112_142351599.STP | Download |
| 3280200200_20210625_152518645.DXF | Download |
| Download all files | |
