328.0250.2.00 AS45
Insert
Part number 3280250200AS45

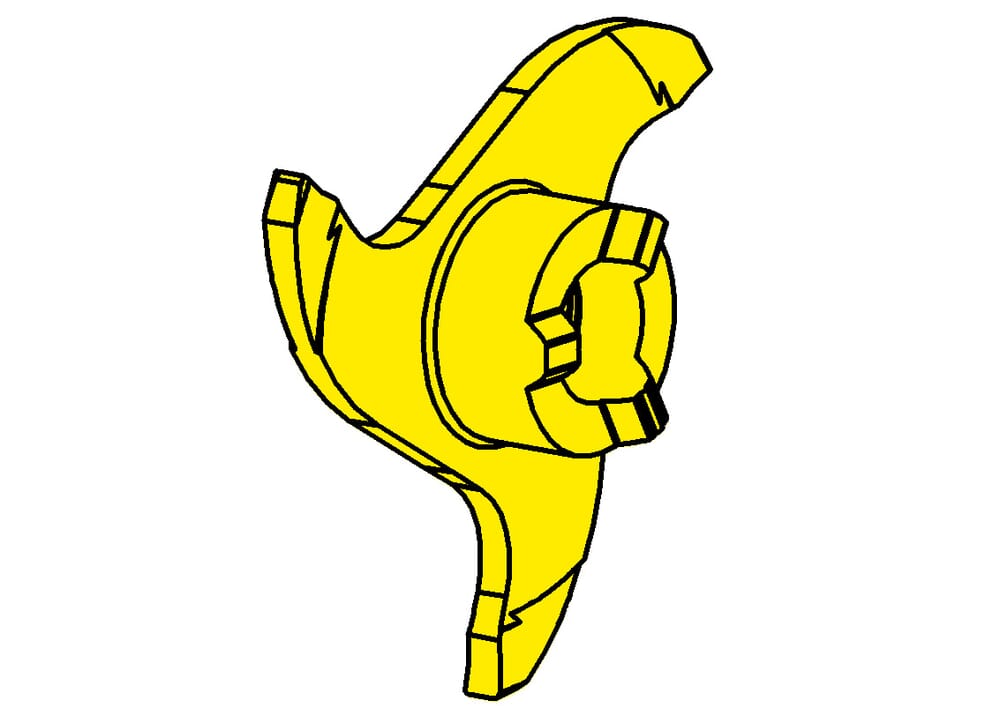

HORN Insert 328.0250.2.00 AS45 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Maximum milling depth/ depth of groove (tmax)
9.3
mm
Width of groove (w)
2.5
mm
plating-seat-size
1
Katalog_SSC
328090R
DIN_SSC
HORN32809084R
ISO_SSC
HORN328090$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
28
mm
| Downloads | |
|---|---|
| 3280250200_20210630_120422035.STP | Download |
| 3280250200_20210627_143529326.DXF | Download |
| Download all files | |
