328.1000.00 AS45
Insert
Part number 328100000AS45

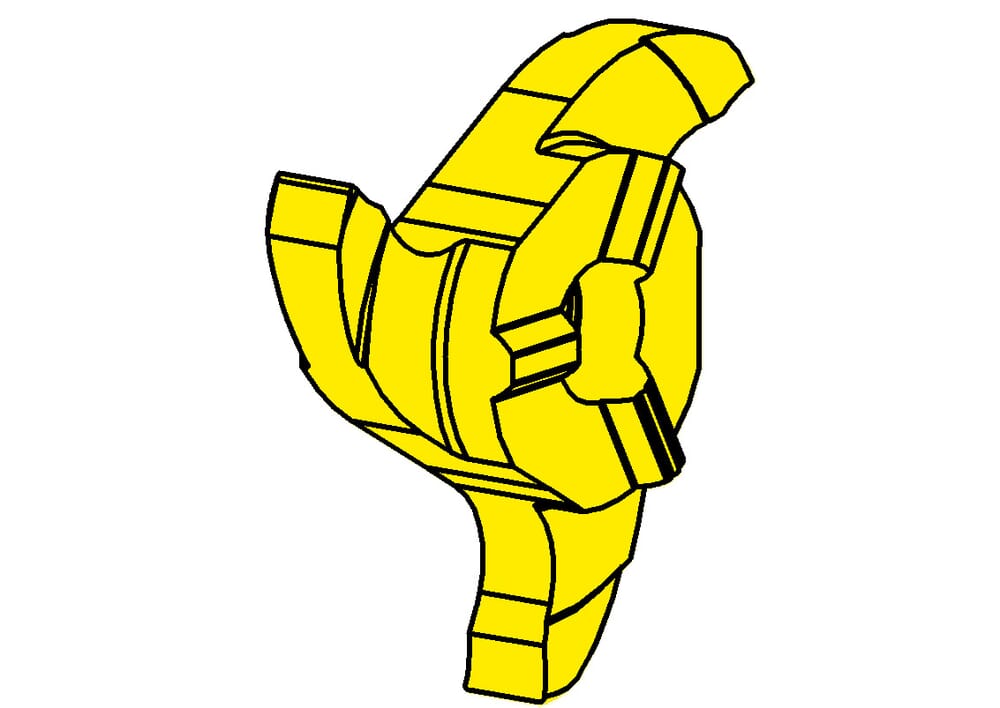

HORN Insert 328.1000.00 AS45 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
10
mm
Maximum milling depth/ depth of groove (tmax)
6.5
mm
Width of groove (w)
10
mm
plating-seat-size
0
Katalog_SSC
328143R
DIN_SSC
HORN32814384R
ISO_SSC
HORN328143$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
27.7
mm
| Downloads | |
|---|---|
| 328100000_20230112_142623946.STP | Download |
| 328100000_20210629_105607690.DXF | Download |
| Download all files | |
