328.1423.1.00 RC45

Insert

Part number 3281423100RC45

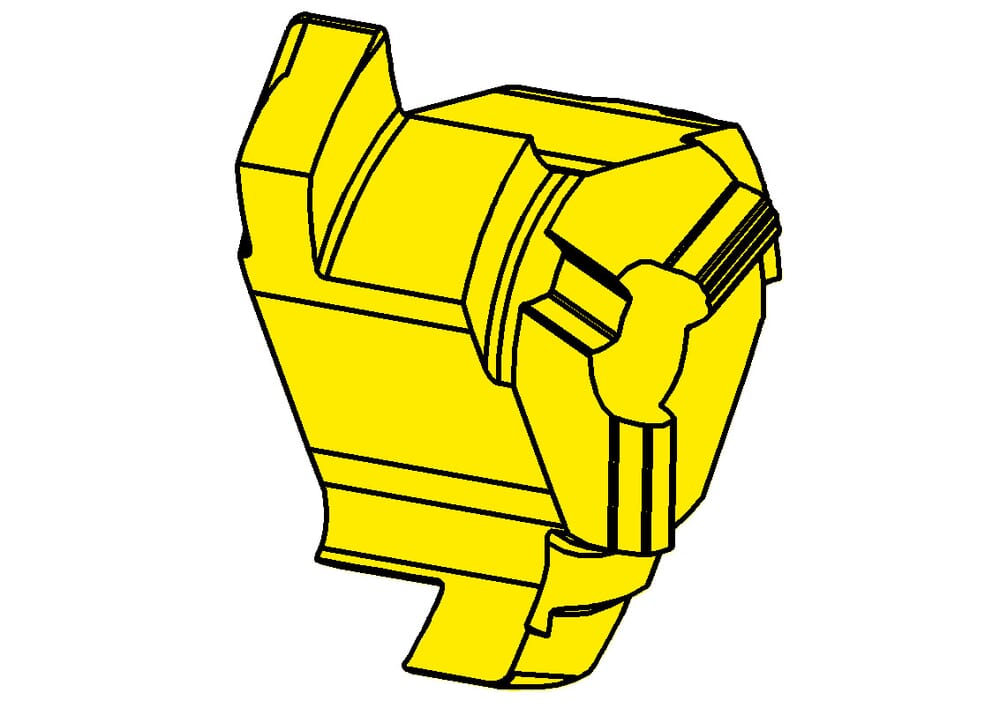

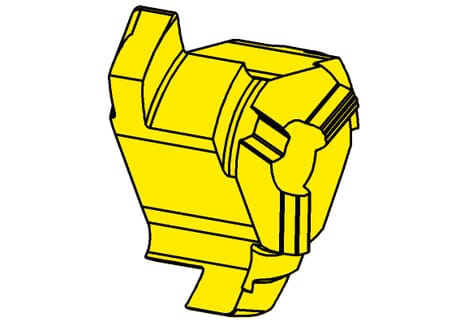

HORN Insert 328.1423.1.00 RC45 for Milling

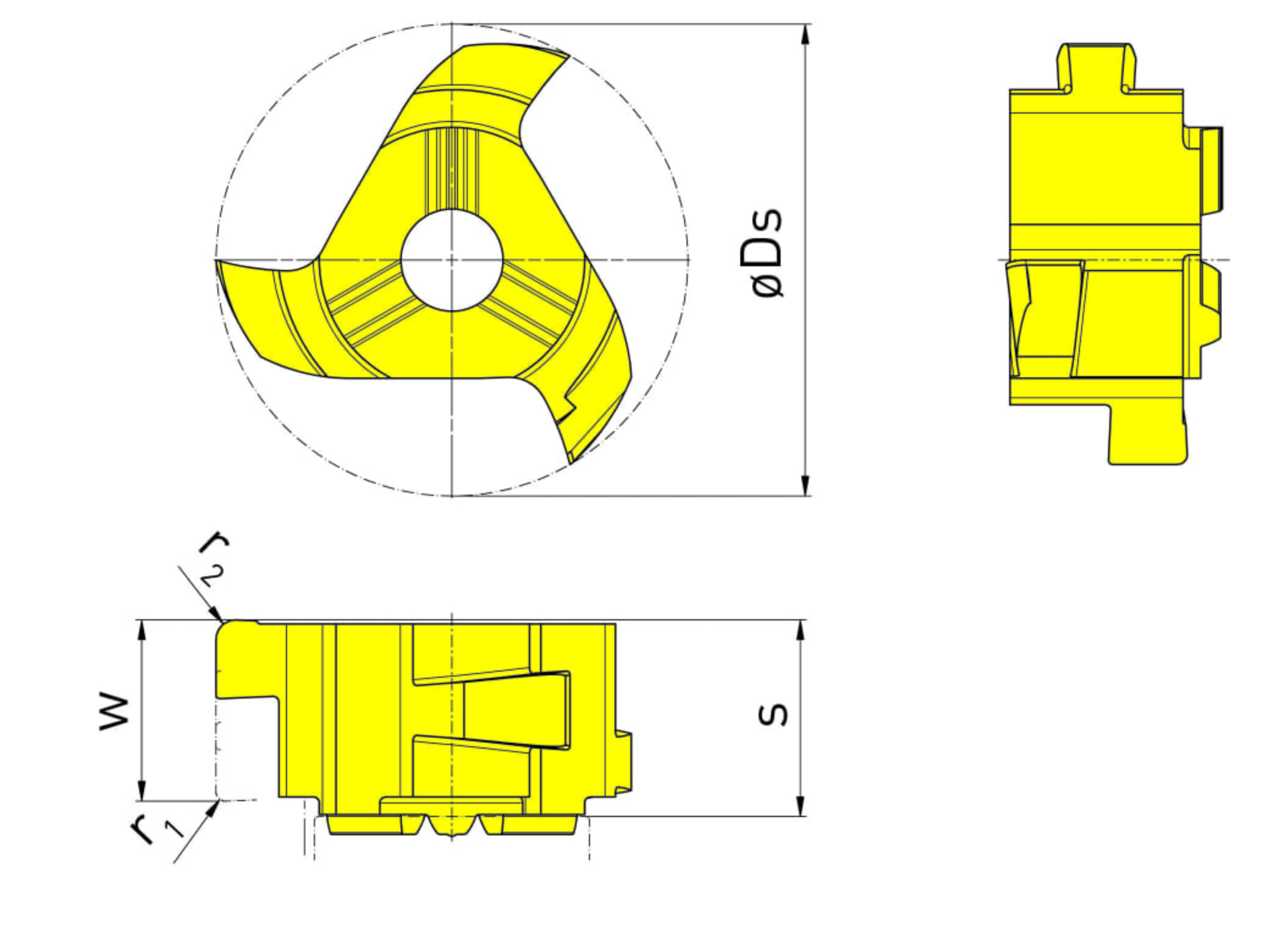

Cutting diameter (Ds)

24 mm

Number of teeth (Z)

1 St.

ISO_SSC

HORN328143$84R$$$$$

Katalog_SSC

328143R

Width of groove (w)

9.2 mm

Cutting insert thickness, setting length complete (s)

10 mm

Corner radius top (r1)

0.5 mm

Corner radius bottom (r2)

1 mm

Size of groove (a)

14 mm
