328.1812.35 AS45

Insert

Part number 328181235AS45

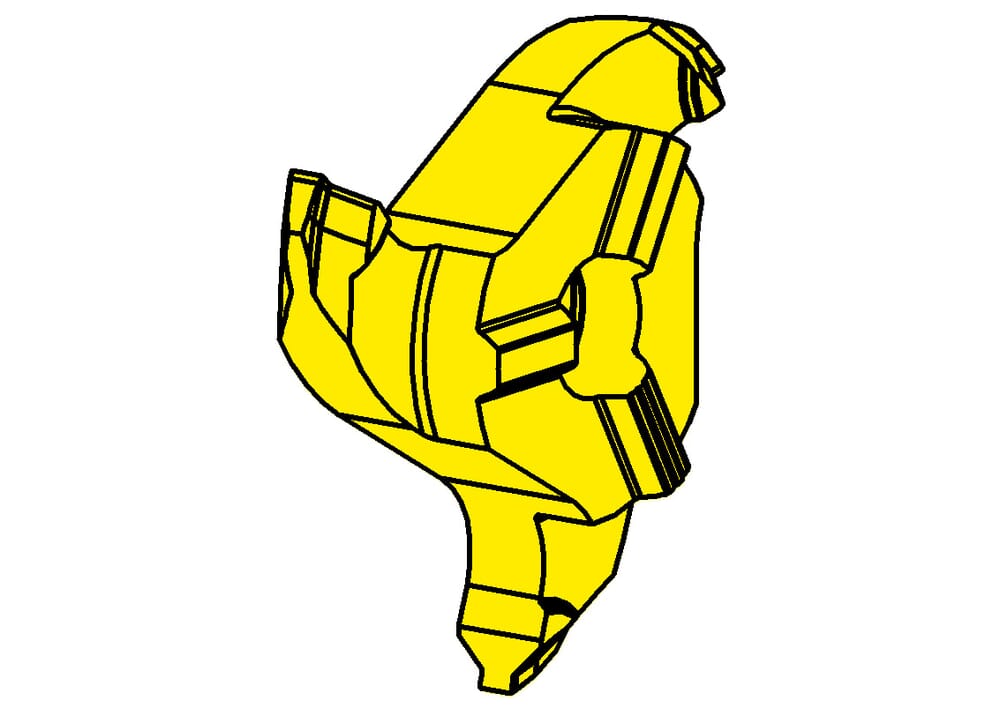

HORN Insert 328.1812.35 AS45 for Milling

Cutting insert thickness, setting length complete (s)

5.95 mm

eclass-shortcut

21-18-20-11

Corner radius (r)

0.2 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

5.1 mm

Cutting diameter (Ds)

27.7 mm

Nominal range (Nw)

1.85 mm

Milling depth without NAKF (t1)

1.21 mm

Maximum milling depth/ depth of groove (tmax)

1.25 mm

Width of groove (w)

1.96 mm

Katalog_SSC

328143R

ISO_SSC

HORN328143$84R$$$$$

Number of teeth (Z)

3 St.
