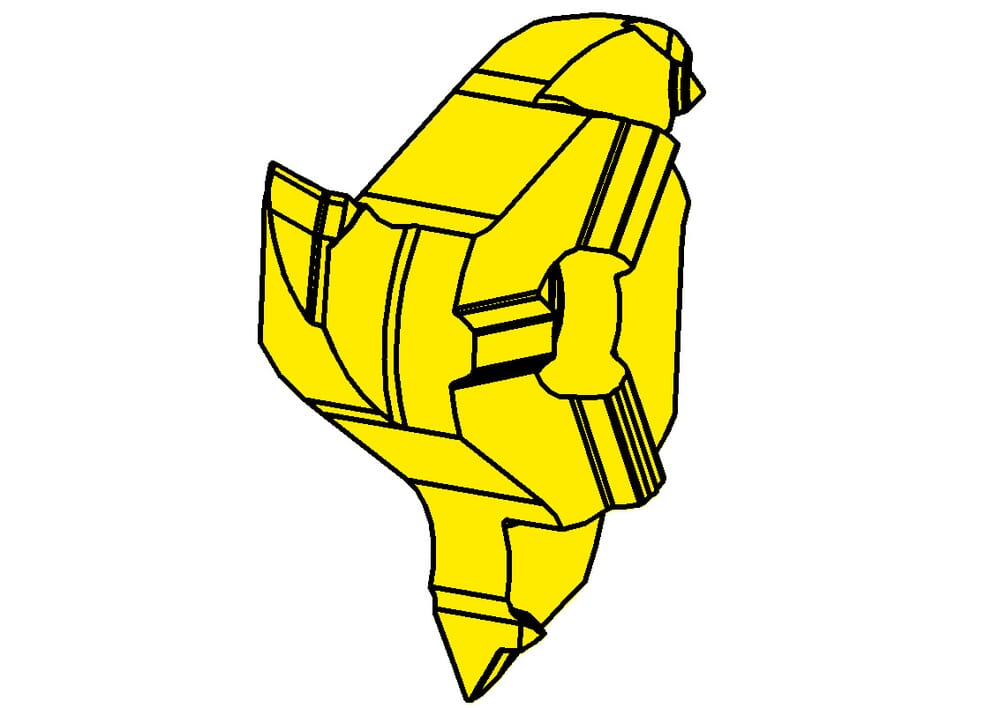

328.3050.01 TI25
Inserts
Part number 328305001TI25
HORN Inserts 328.3050.01 TI25 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
27.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN328143$84R$$$$$
Katalog_SSC
328143R
Setting length (E)
4.8
mm
Cutting insert height, Cutting insert thickness (s)
7.2
mm
Pitch (P)
3
mm
Maximum pitch (Pmax)
5
mm
| Downloads | |
|---|---|
| 328_3050_01_TI25-DXF.DXF | Download |
| 328_3050_01_TI25-ISO.XML | Download |
| 328_3050_01_TI25-STP.STP | Download |
| 328_3050_01_TI25-DIN.XML | Download |
| Download all files | |
