332.0160.2.00 AS45
Insert
Part number 3320160200AS45

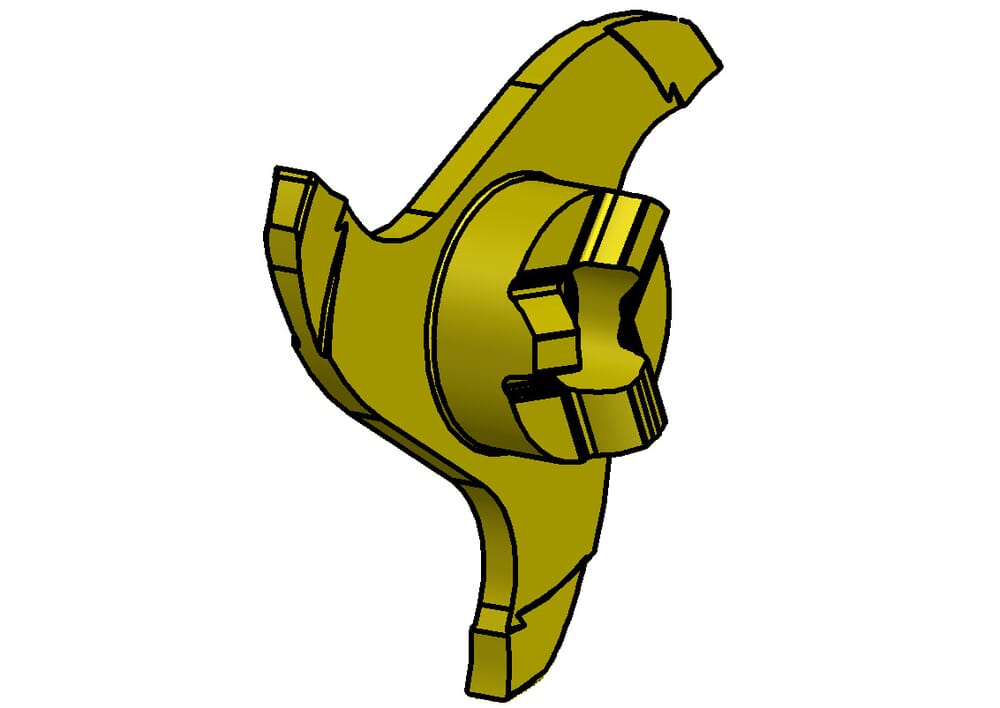

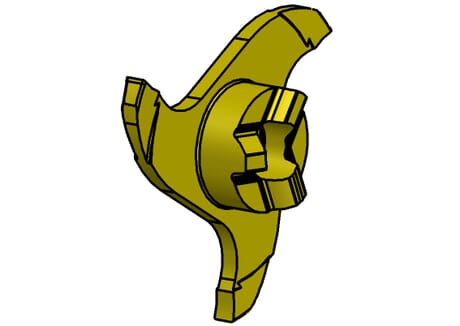

HORN Insert 332.0160.2.00 AS45 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Maximum milling depth/ depth of groove (tmax)
10
mm
Width of groove (w)
1.6
mm
plating-seat-size
1
Katalog_SSC
332110R
DIN_SSC
HORN33211084R
ISO_SSC
HORN332110$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
31.7
mm
| Downloads | |
|---|---|
| 3320160200_20230112_143733739.STP | Download |
| 3320160200_20210626_101036449.DXF | Download |
| Download all files | |
