332.0250.2.00 TI25
Insert
Part number 3320250200TI25

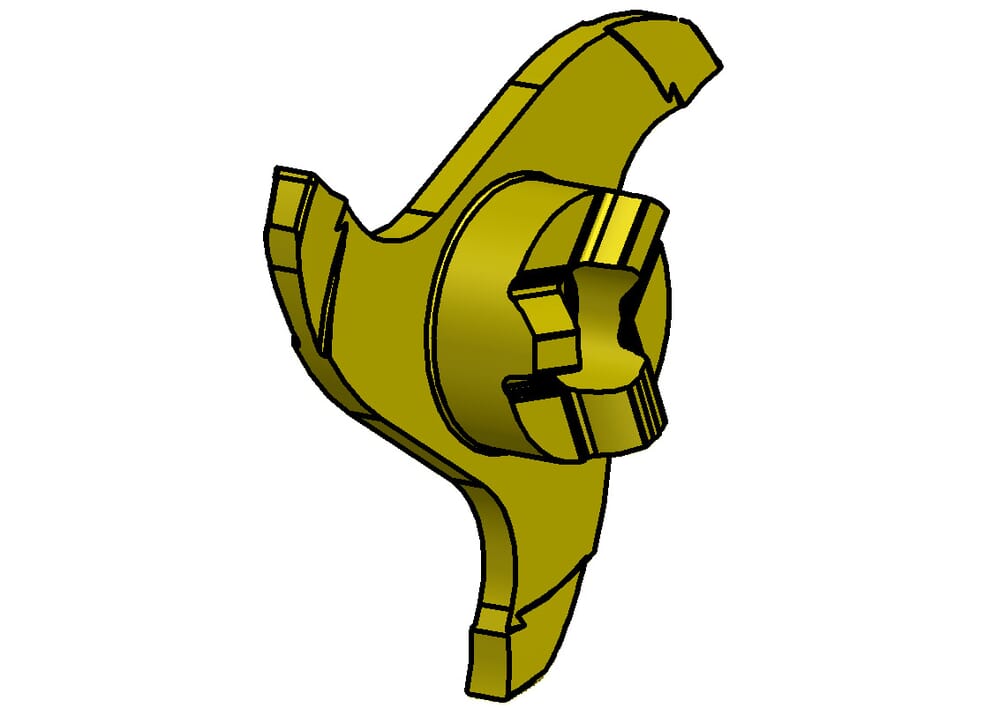

HORN Insert 332.0250.2.00 TI25 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Maximum milling depth/ depth of groove (tmax)
10
mm
Width of groove (w)
2.5
mm
plating-seat-size
1
Katalog_SSC
332110R
DIN_SSC
HORN33211084R
ISO_SSC
HORN332110$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
31.7
mm
| Downloads | |
|---|---|
| 3320250200_20240118_091548068.STP | Download |
| 3320250200_20210626_145732633.DXF | Download |
| Download all files | |
