608.0080.00 EG35
insert
Part number 608008000EG35

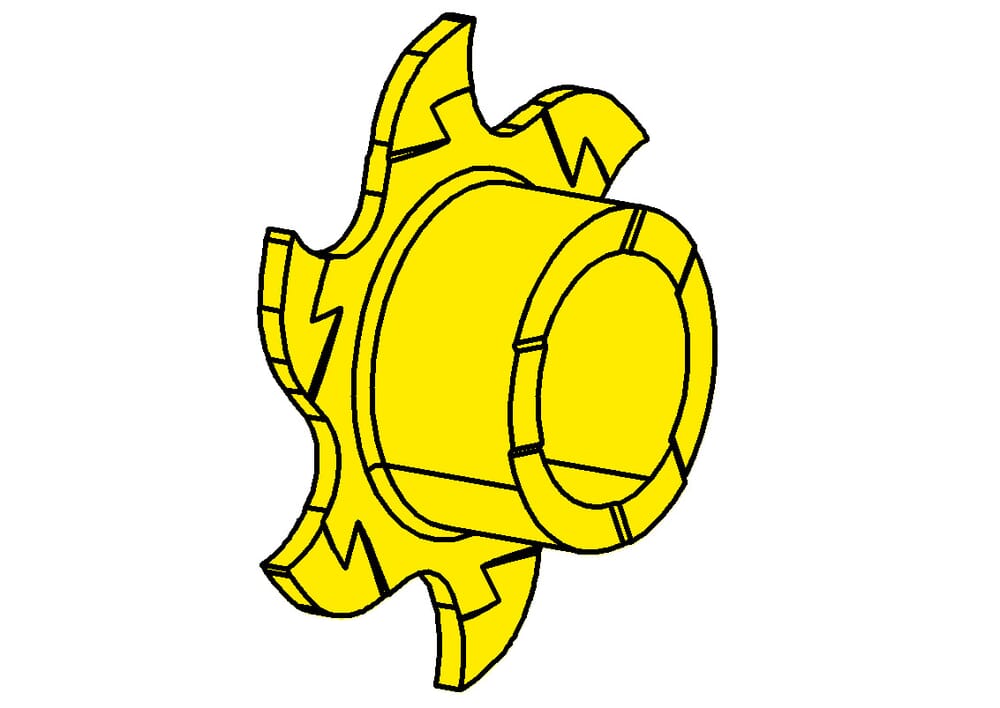

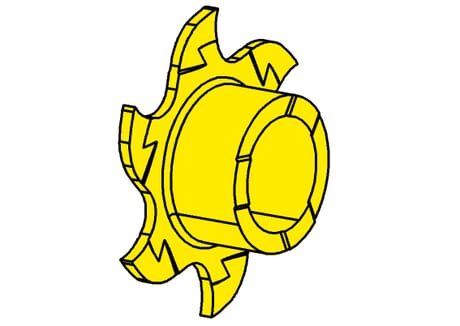

HORN insert 608.0080.00 EG35 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
15.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN308080$84R$$$$$
DIN_SSC
HORN30808084R
Katalog_SSC
308080R
Width of groove (w)
0.8
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Cutting insert thickness, setting length complete (s)
4.9
mm
| Downloads | |
|---|---|
| 608008000.STP | Download |
| 608008000_20240205_170121243.DXF | Download |
| Download all files | |
