608.1730.01 EG55
Insert
Part number 608173001EG55

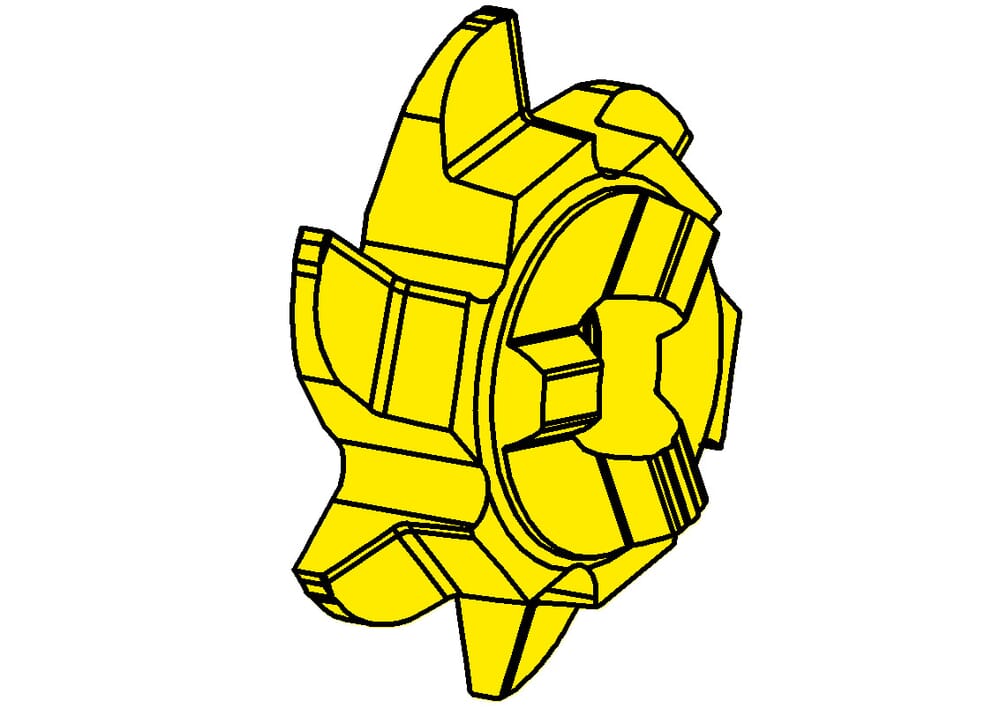

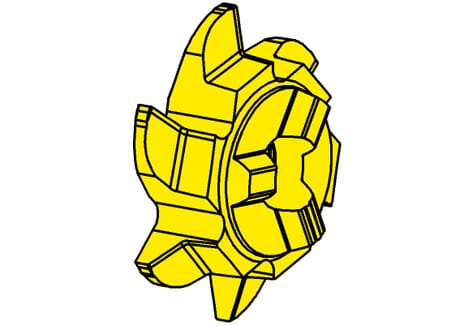

HORN Insert 608.1730.01 EG55 for Gewinden
Please note:Technical instructions
Profile included angle (PNA)
30 °
Thred pitch maximum (TPX)
3 mm
Thread pitch minimum (TPN)
3 mm
Protruding length (LPR)
4.55 mm
Functional length (LF)
3.4 mm
hub diameter (DHUB)
8 mm
Cutting diameter (DC)
15.7 mm
Cutting depth maximum (CDX)
1.9 mm
