611.0200.00 TI25
Inserts
Part number 611020000TI25

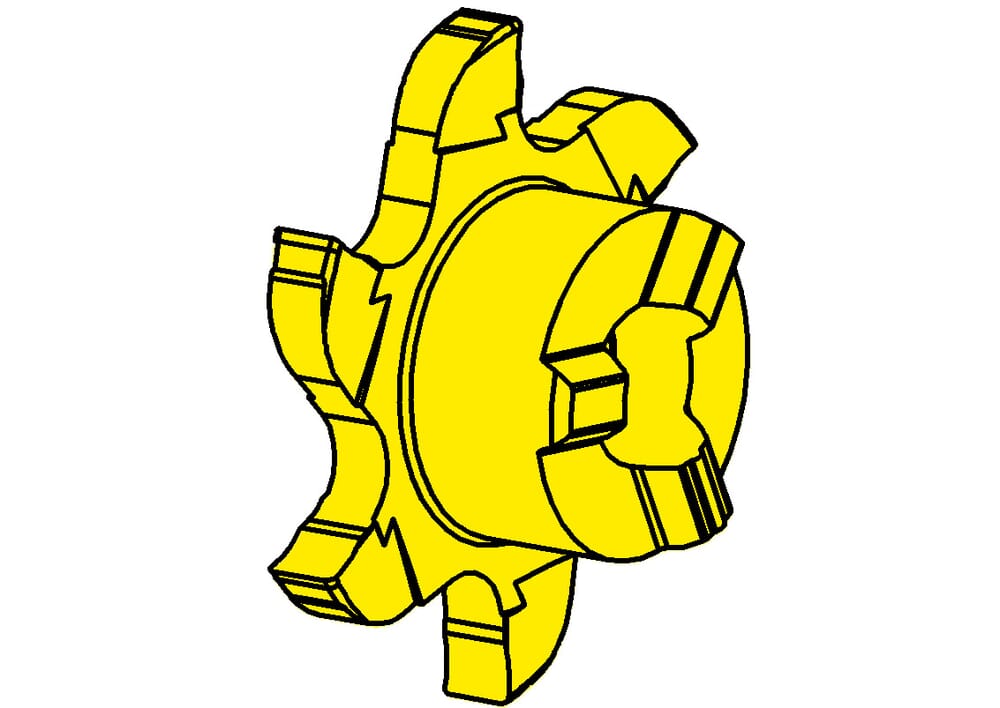

HORN Inserts 611.0200.00 TI25 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Width of groove (w)
2
mm
plating-seat-size
0
Katalog_SSC
311090R
DIN_SSC
HORN-31109084R
ISO_SSC
HORN311090$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
17.7
mm
| Downloads | |
|---|---|
| 611020000_20230112_151408514.STP | Download |
| 611020000_20210625_155306743.DXF | Download |
| Download all files | |
