611.1725.61 EG55

Insert

Part number 611172561EG55

HORN Insert 611.1725.61 EG55 for Milling

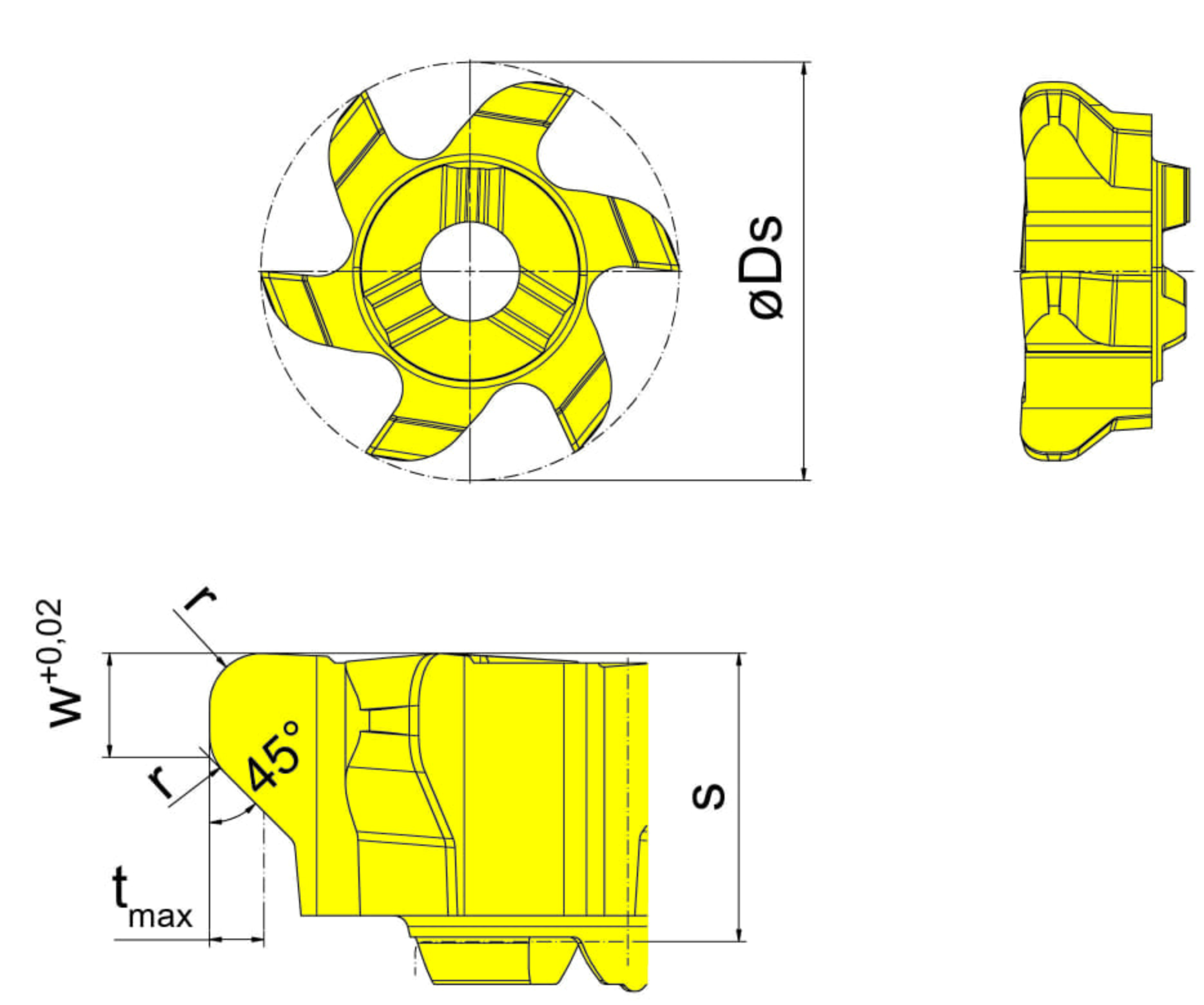

Cutting diameter (Ds)

17.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN311090$84R$$$$$

DIN_SSC

HORN31109084R

Katalog_SSC

311090R

Width of groove (w)

2.2 mm

Maximum milling depth/ depth of groove (tmax)

1.3 mm

Cutting insert thickness, setting length complete (s)

6.1 mm

Corner radius (r)

1.1 mm
