613.0130.00 EG55

insert

Part number 613013000EG55

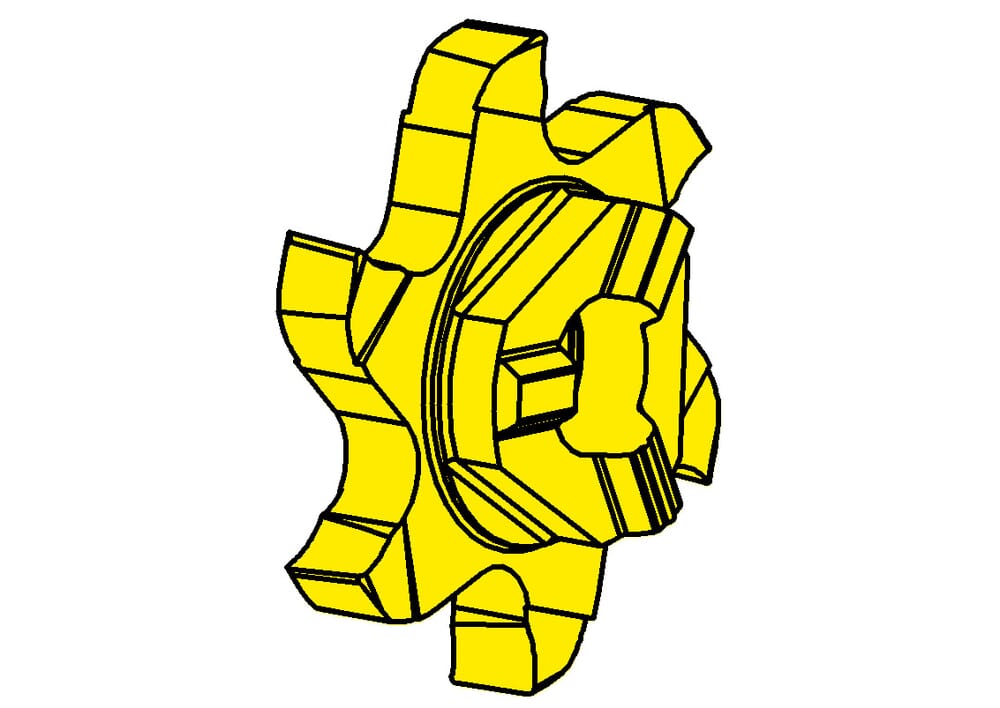

HORN insert 613.0130.00 EG55 for Milling

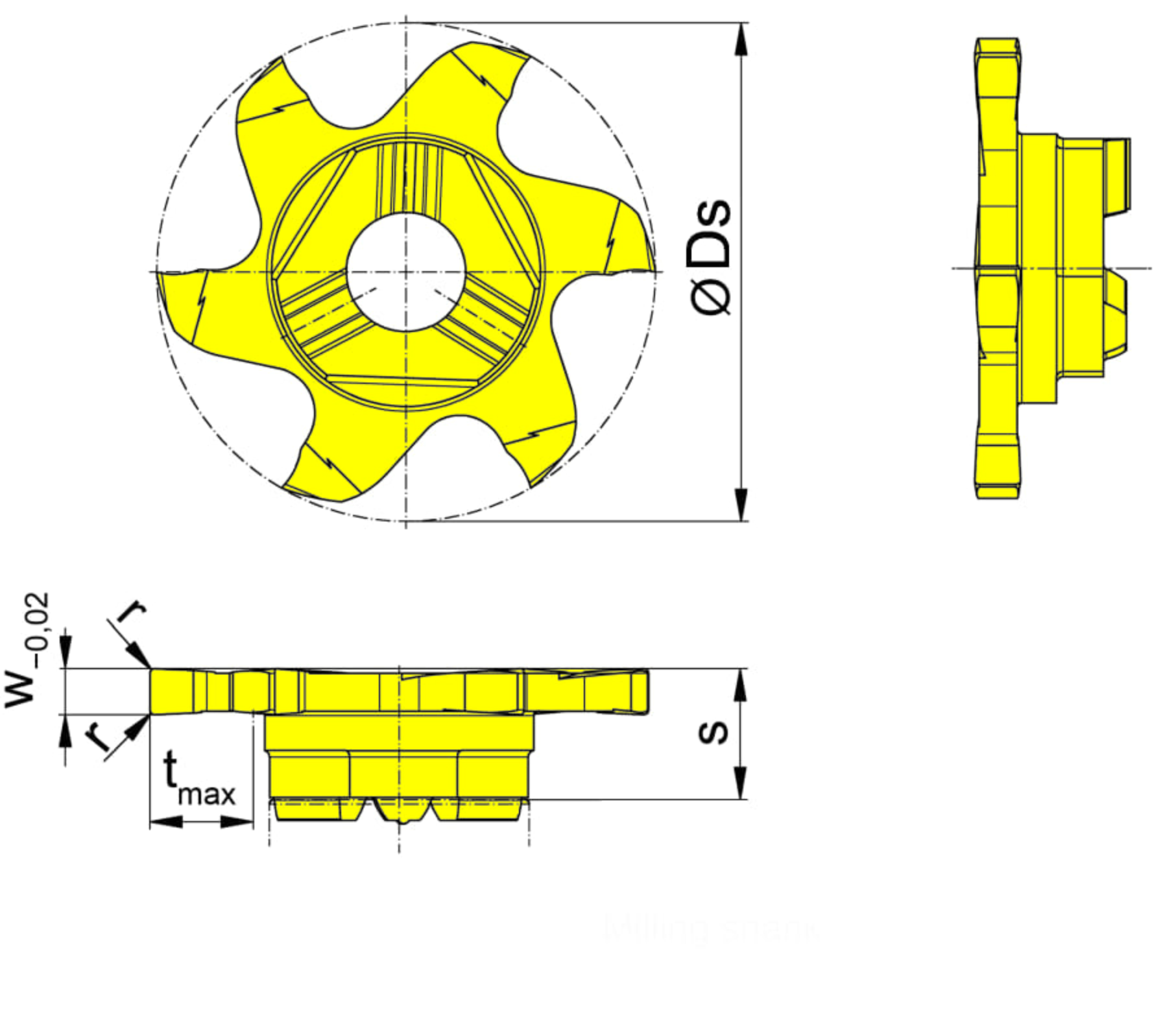

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

6 St.

eclass-shortcut

21-18-20-11

ISO_SSC

HORN313113$84R$$$$$

DIN_SSC

HORN-31311384R

Katalog_SSC

313113R

Width of groove (w)

1.41 mm

Maximum milling depth/ depth of groove (tmax)

4.5 mm

Nominal range (Nw)

1.3 mm

Cutting insert thickness, setting length complete (s)

5.7 mm
