613.0300.00 TI25
Inserts
Part number 613030000TI25

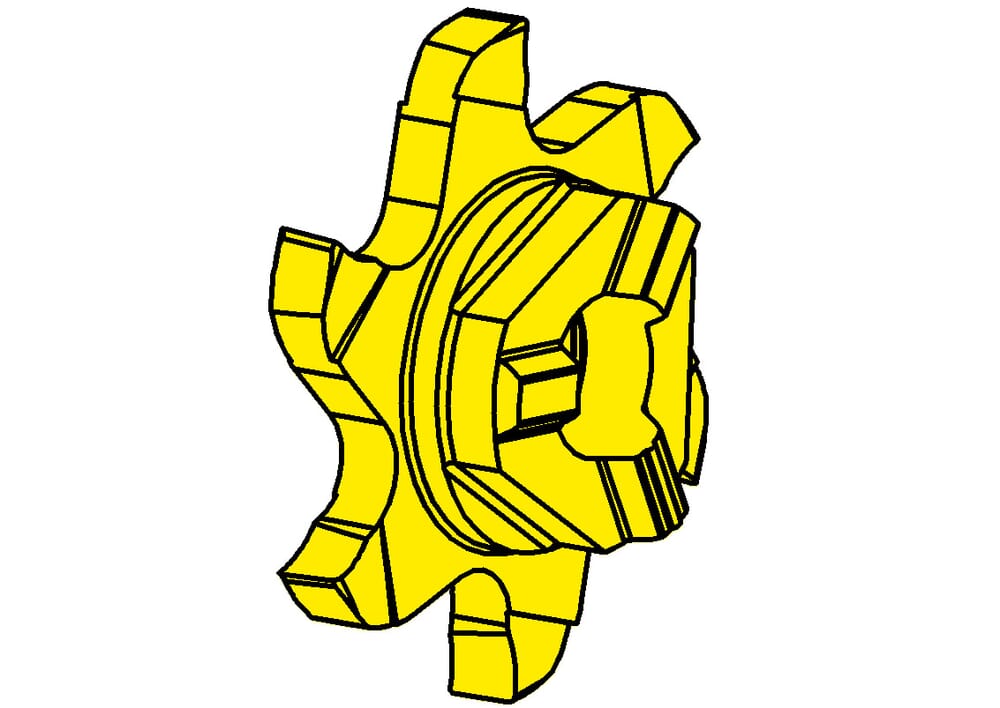

HORN Inserts 613.0300.00 TI25 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Width of groove (w)
3
mm
plating-seat-size
0
Katalog_SSC
313113R
DIN_SSC
HORN31311384R
ISO_SSC
HORN313113$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
21.7
mm
| Downloads | |
|---|---|
| 613_0300_00_20171122_000824330.STP | Download |
| 613030000_20210625_160257756.DXF | Download |
| Download all files | |
