613.0415.00 AS45
Insert
Part number 613041500AS45

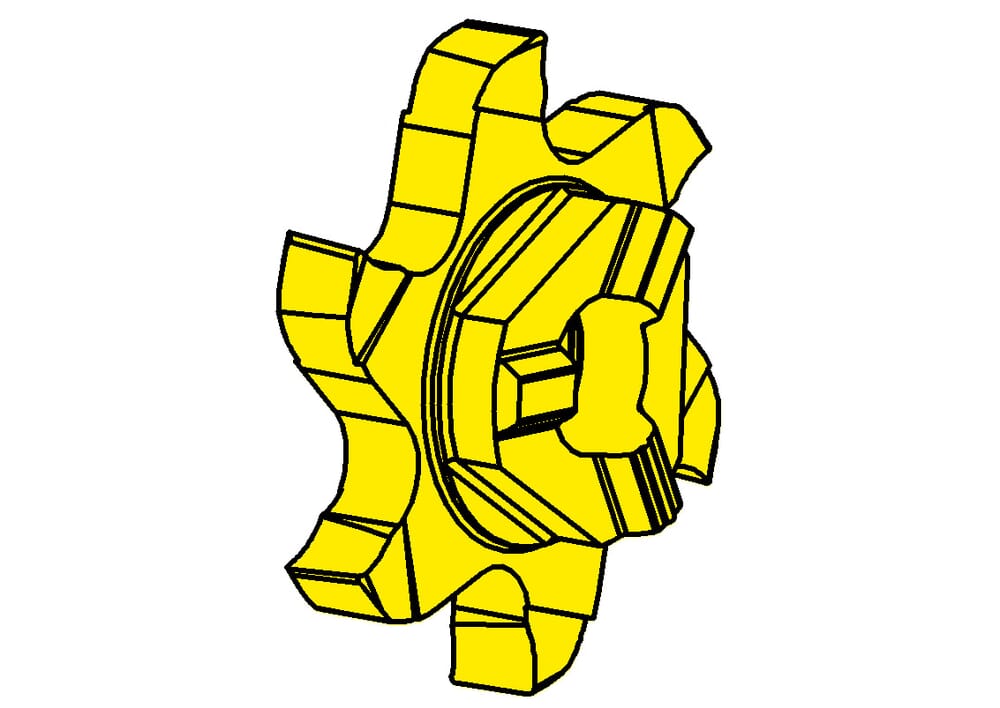

HORN Insert 613.0415.00 AS45 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Nominal range (Nw)
4.15
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Width of groove (w)
4.26
mm
Katalog_SSC
313113R
DIN_SSC
HORN31311384R
ISO_SSC
HORN313113$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
21.7
mm
| Downloads | |
|---|---|
| 613041500.STP | Download |
| 613041500_20211118_174623078.DXF | Download |
| Download all files | |
