613.0600.00 EG55
613 Milling insert
Part number 613060000EG55

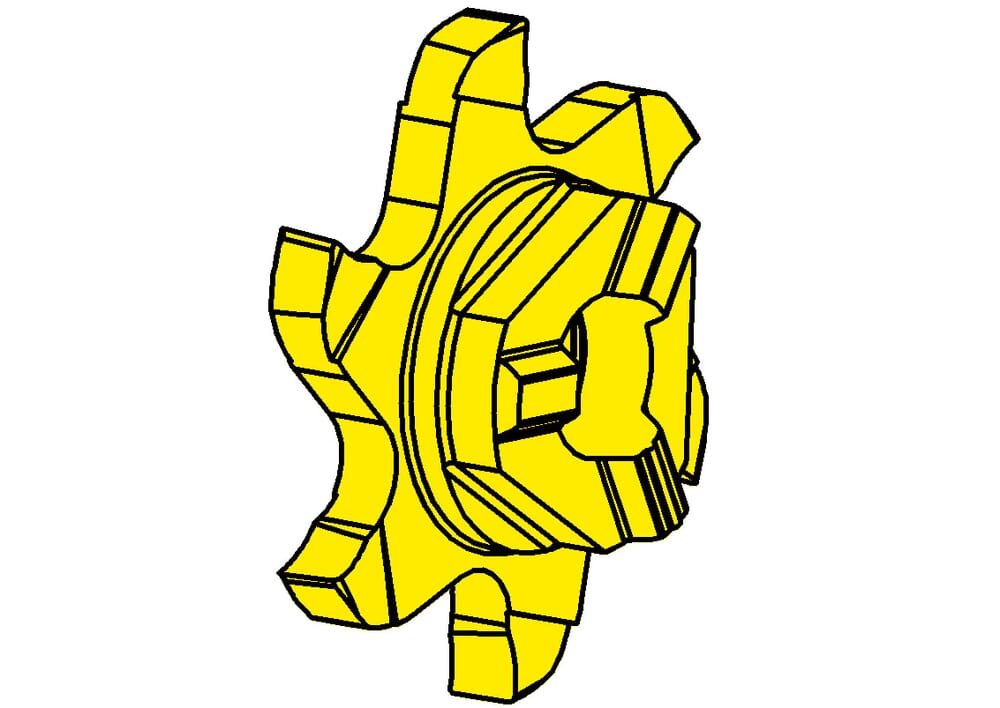

HORN 613 Milling insert 613.0600.00 EG55 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
6
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Width of groove (w)
6
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Cutting insert thickness, setting length complete (s)
7.35
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| 613060000_20240205_230816508.DXF | Download |
| 613060000.STP | Download |
| Download all files | |
