613.1812.35 EG55

Insert

Part number 613181235EG55

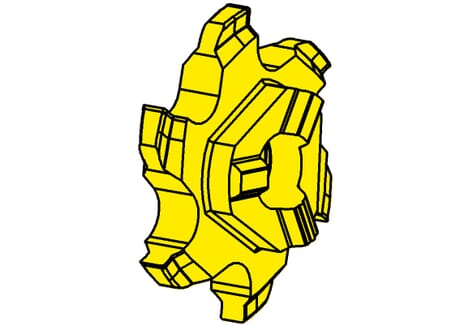

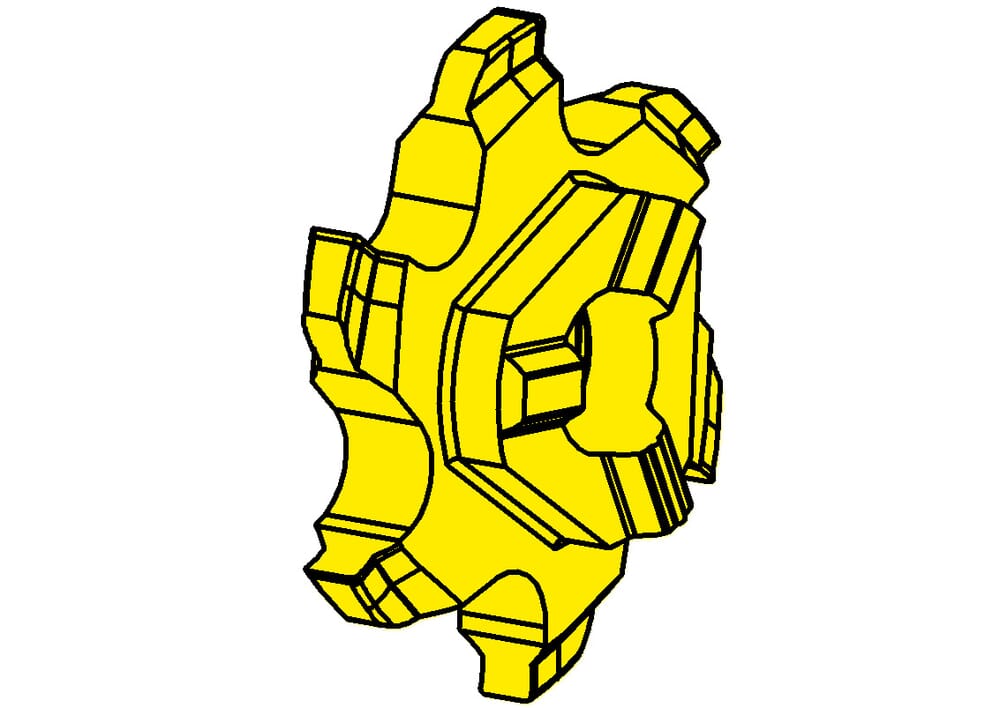

HORN Insert 613.1812.35 EG55 for Milling

ISO_SSC

HORN313113$84R$$$$$

Corner radius (r)

0.2 mm

Cutting insert thickness to cutting edge, setting length to cutting edge (s1)

4.7 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Nominal range (Nw)

1.85 mm

Milling depth without NAKF (t1)

1.21 mm

Maximum milling depth/ depth of groove (tmax)

1.25 mm

Width of groove (w)

1.96 mm

Katalog_SSC

313113R

DIN_SSC

HORN-31311384R

eclass-shortcut

21-18-20-11

Number of teeth (Z)

6 St.

Cutting diameter (Ds)

21.7 mm
