613.R200.00 AS45
Insert
Part number 613R20000AS45

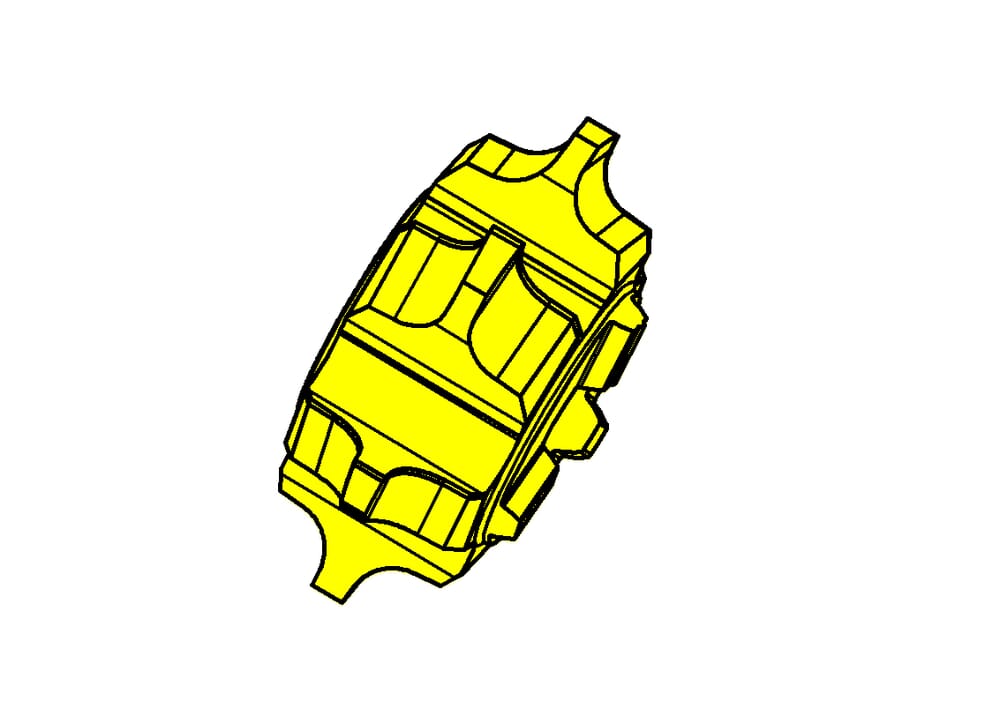

HORN Insert 613.R200.00 AS45 for Milling
Please note:Technical instructions

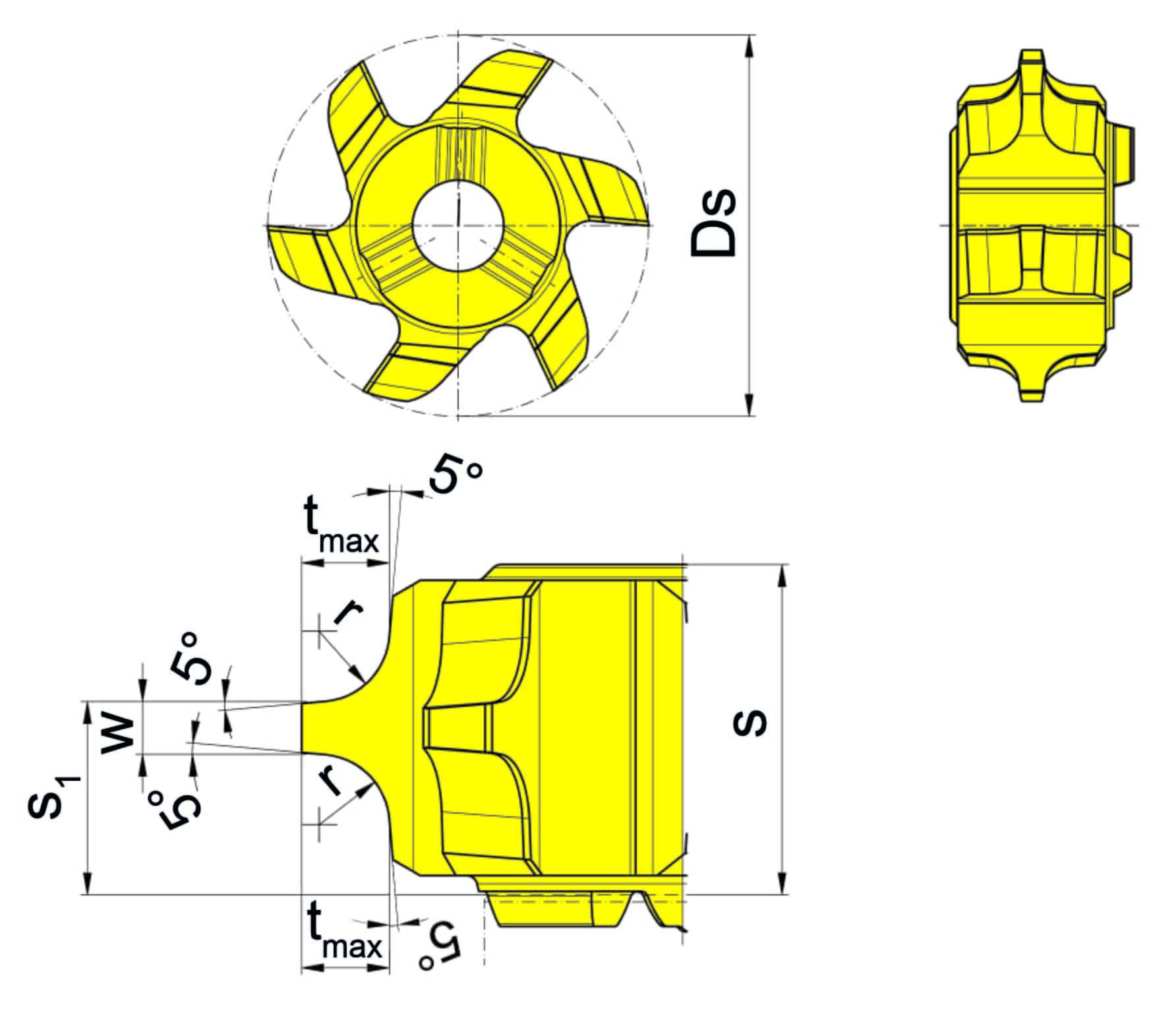

Chamfer size (tmax)
2.5
mm
Corner radius (r)
2
mm
Setting range radial (s1)
5.5
mm
Cutting insert thickness, setting length complete (s)
9.4
mm
Width of groove (w)
1.5
mm
Katalog_SSC
313113R
DIN_SSC
HORN-31311384R
ISO_SSC
HORN313113$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
21.7
mm
| Downloads | |
|---|---|
| 613R20000_20230112_154457827.STP | Download |
| 613R20000.DXF | Download |
| Download all files | |
