628.0100.2.20 AS45
Insert
Part number 6280100220AS45

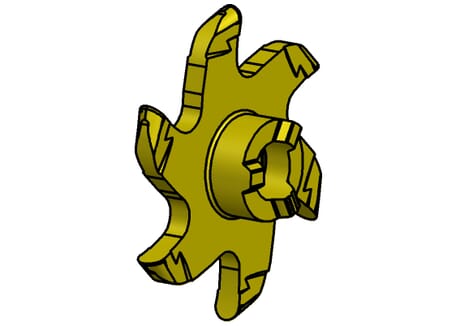

HORN Insert 628.0100.2.20 AS45 for Milling
Please note:Technical instructions
cutting-edge-diameter-met
28
mm
number-of-teeth
6
St.
ISO_SSC
HORN328090$84R$$$$$
Katalog_SSC
328090R
cutting-width-met
2
mm
milling-depth-groove-depth-max-met
9.3
mm
cutting-insert-thickness-met
6.1
mm
radius-met
1
mm
| Downloads | |
|---|---|
| 628_0100_2_20_AS45-DXF.DXF | Download |
| 628_0100_2_20_AS45-ISO.XML | Download |
| 628_0100_2_20_AS45-STP.STP | Download |
| 628_0100_2_20_AS45-DIN.XML | Download |
| Download all files | |
