628.0120.2.00 TI25

Insert

Part number 6280120200TI25

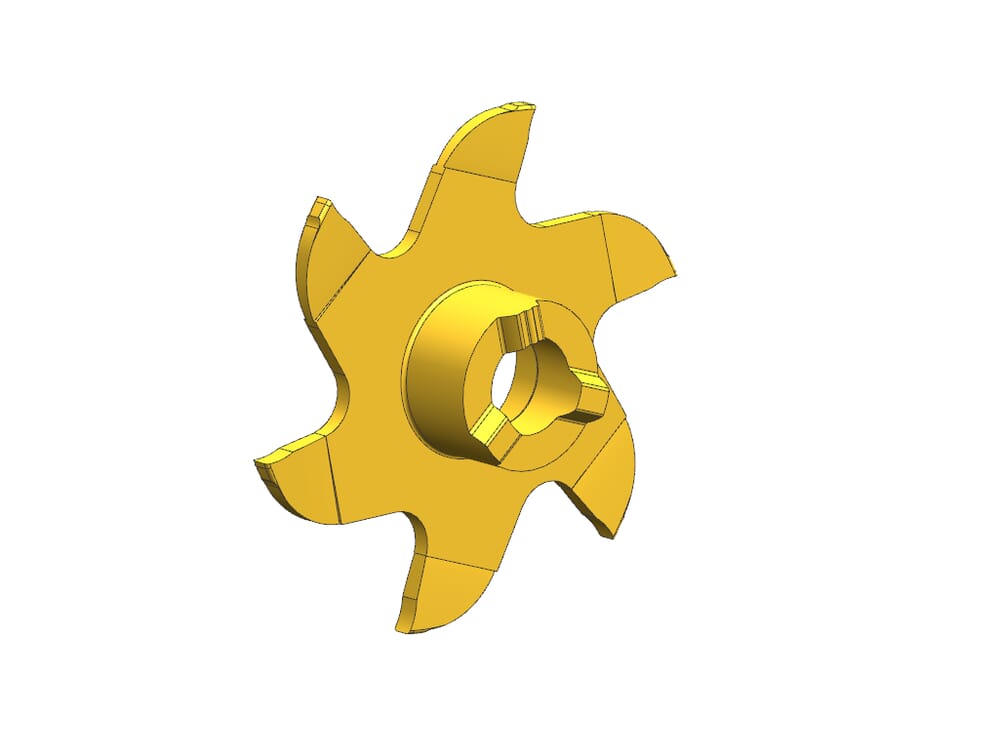

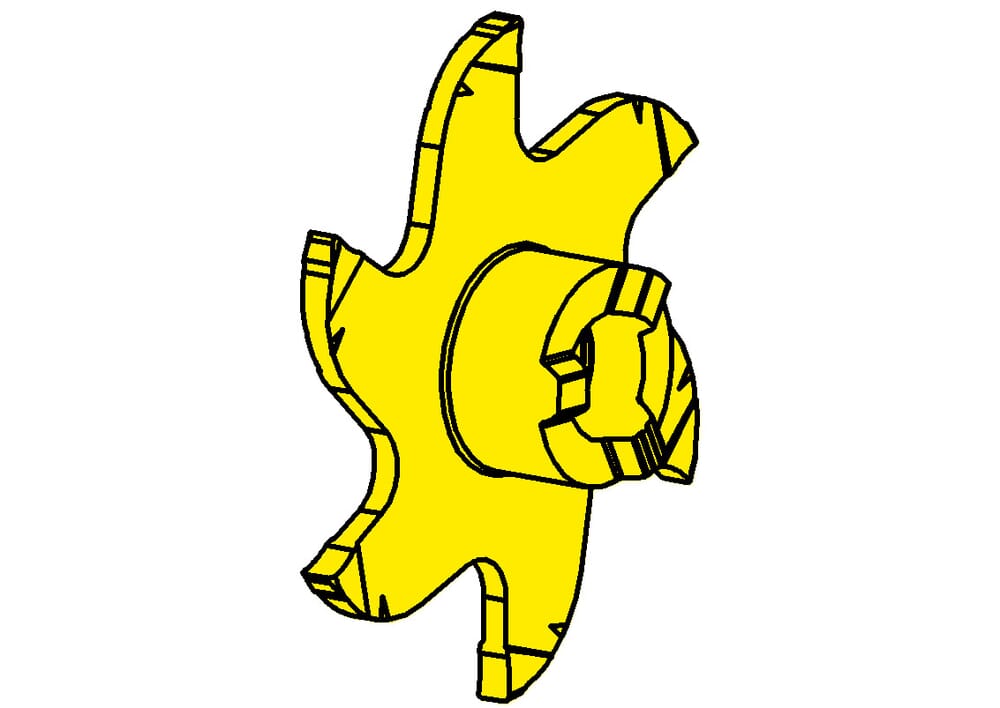

HORN Insert 628.0120.2.00 TI25 for Milling

Corner radius (r)

0.2 mm

Cutting insert thickness, setting length complete (s)

6.1 mm

Maximum milling depth/ depth of groove (tmax)

9.3 mm

Width of groove (w)

1.2 mm

plating-seat-size

Katalog_SSC

328090R

DIN_SSC

HORN32809084R

ISO_SSC

HORN328090$84R$$$$$

eclass-shortcut

21-18-20-11

Number of teeth (Z)

6 St.

Cutting diameter (Ds)

28 mm
