628.0130.00 AS45

Insert

Part number 628013000AS45

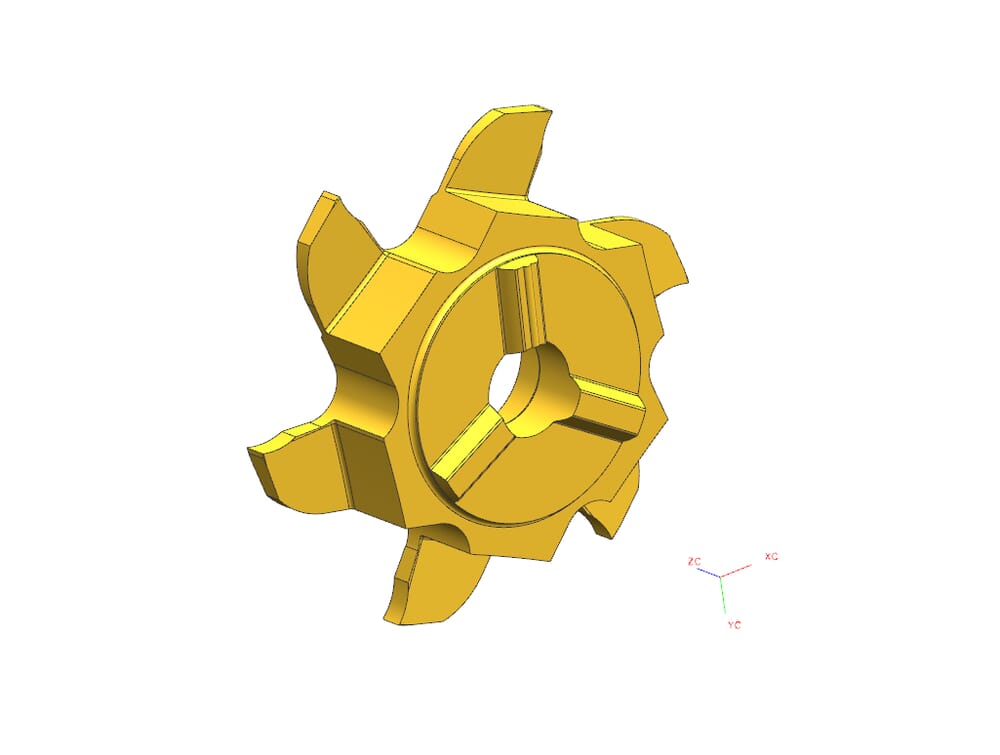

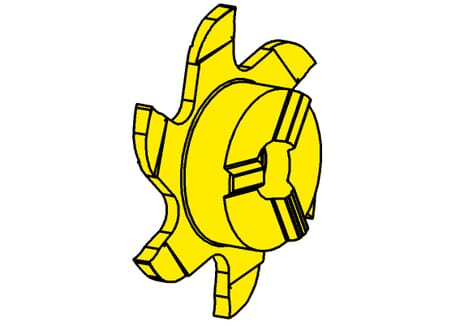

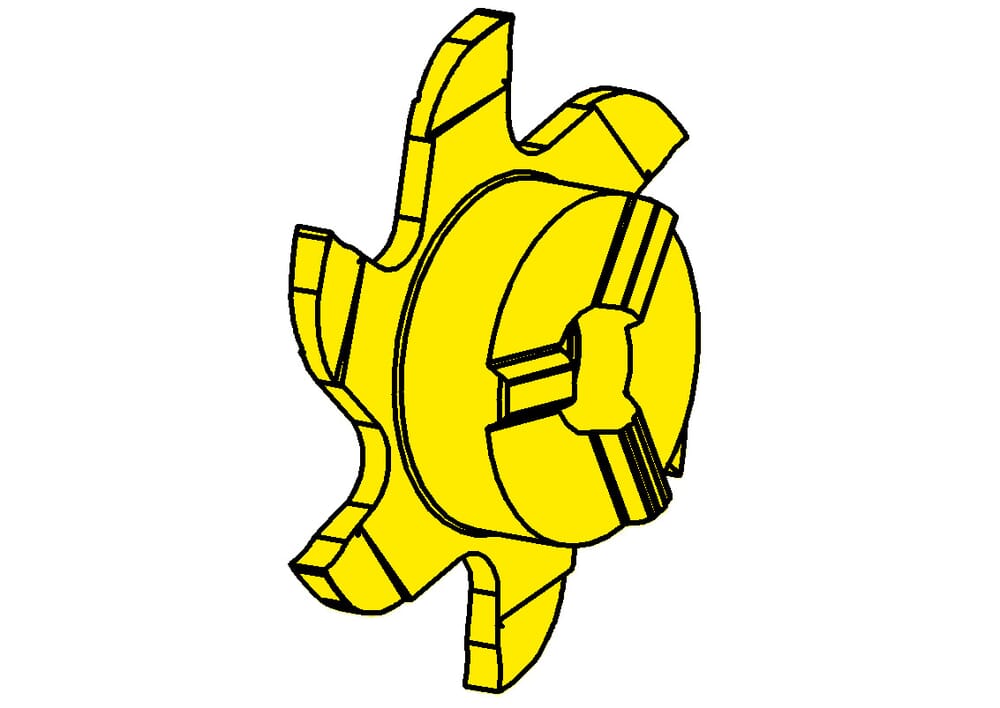

HORN Insert 628.0130.00 AS45 for Milling

Cutting diameter (Ds)

27.7 mm

Number of teeth (Z)

6 St.

eclass-shortcut

21-18-20-11

ISO_SSC

HORN328143$84R$$$$$

DIN_SSC

HORN32814384R

Katalog_SSC

328143R

Width of groove (w)

1.41 mm

Maximum milling depth/ depth of groove (tmax)

6.5 mm

Nominal range (Nw)

1.3 mm

Cutting insert thickness, setting length complete (s)

6.1 mm
