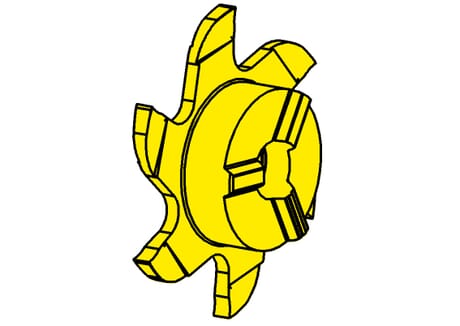

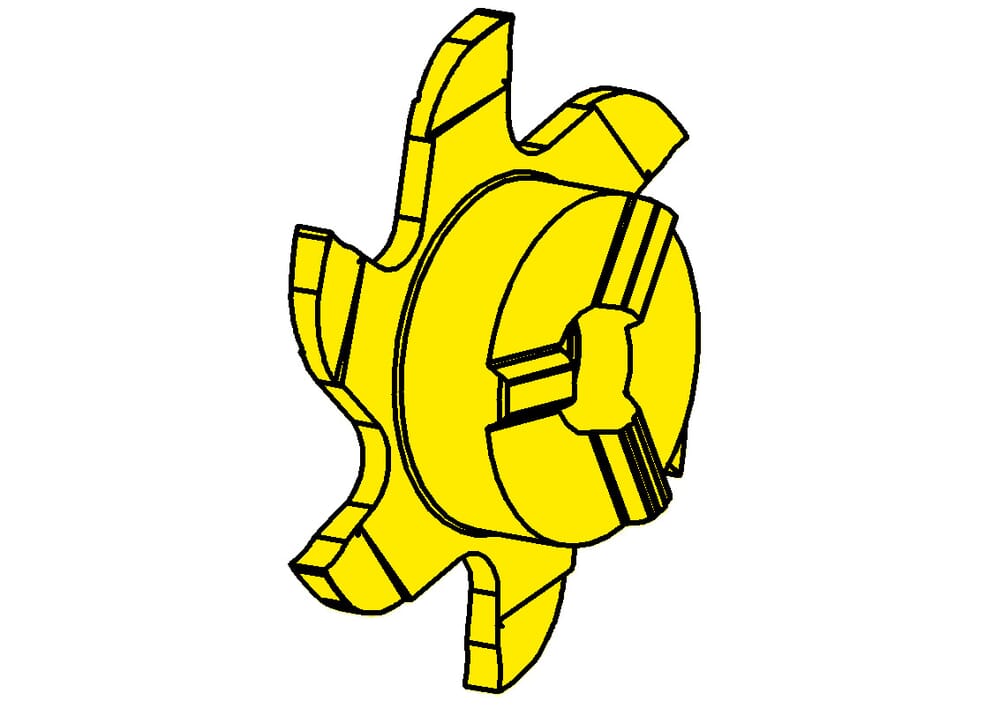

628.0160.00 TI25

Inserts

Part number 628016000TI25

HORN Inserts 628.0160.00 TI25 for Milling

Cutting diameter (Ds)

27.7 mm

Number of teeth (Z)

6 St.

eclass-shortcut

21-18-20-11

ISO_SSC

HORN328143$84R$$$$$

DIN_SSC

HORN32814384R

Katalog_SSC

328143R

Width of groove (w)

1.71 mm

Maximum milling depth/ depth of groove (tmax)

6.5 mm

Nominal range (Nw)

1.6 mm

Cutting insert thickness, setting length complete (s)

6.1 mm
