628.0215.00 AS45

Insert

Part number 628021500AS45

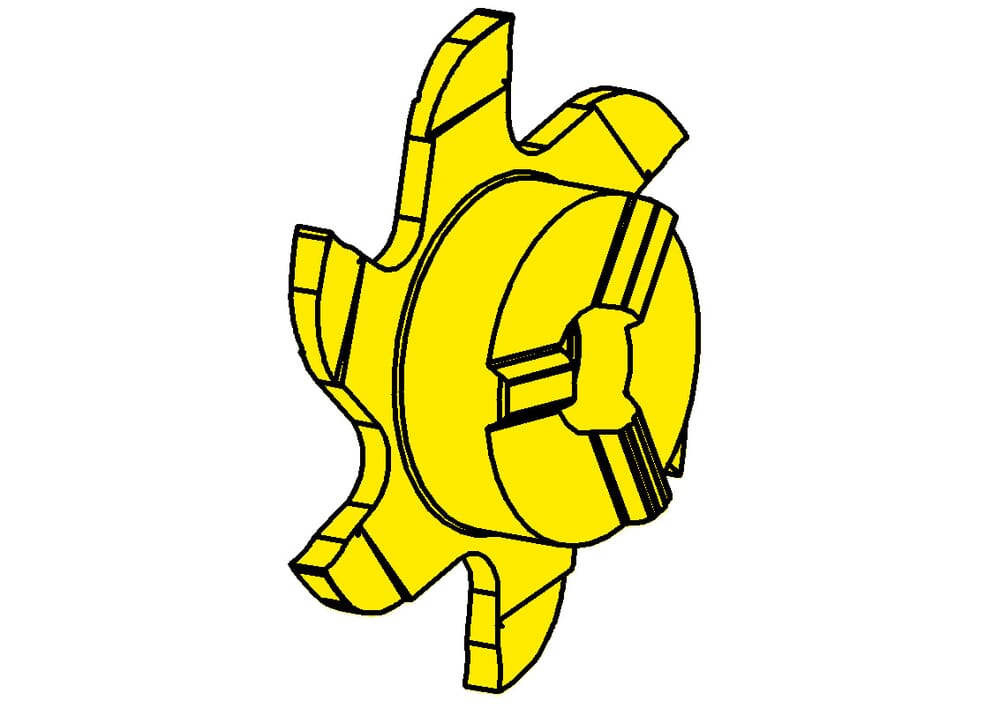

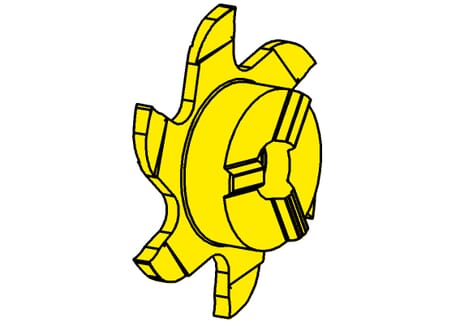

HORN Insert 628.0215.00 AS45 for Milling

Corner radius (r)

0.2 mm

Cutting insert thickness, setting length complete (s)

6.1 mm

Nominal range (Nw)

2.15 mm

Maximum milling depth/ depth of groove (tmax)

6.5 mm

Width of groove (w)

2.26 mm

Katalog_SSC

328143R

DIN_SSC

HORN32814384R

ISO_SSC

HORN328143$84R$$$$$

eclass-shortcut

21-18-20-11

Number of teeth (Z)

6 St.

Cutting diameter (Ds)

27.7 mm
