628.0400.00 TH35
insert
Part number 628040000TH35

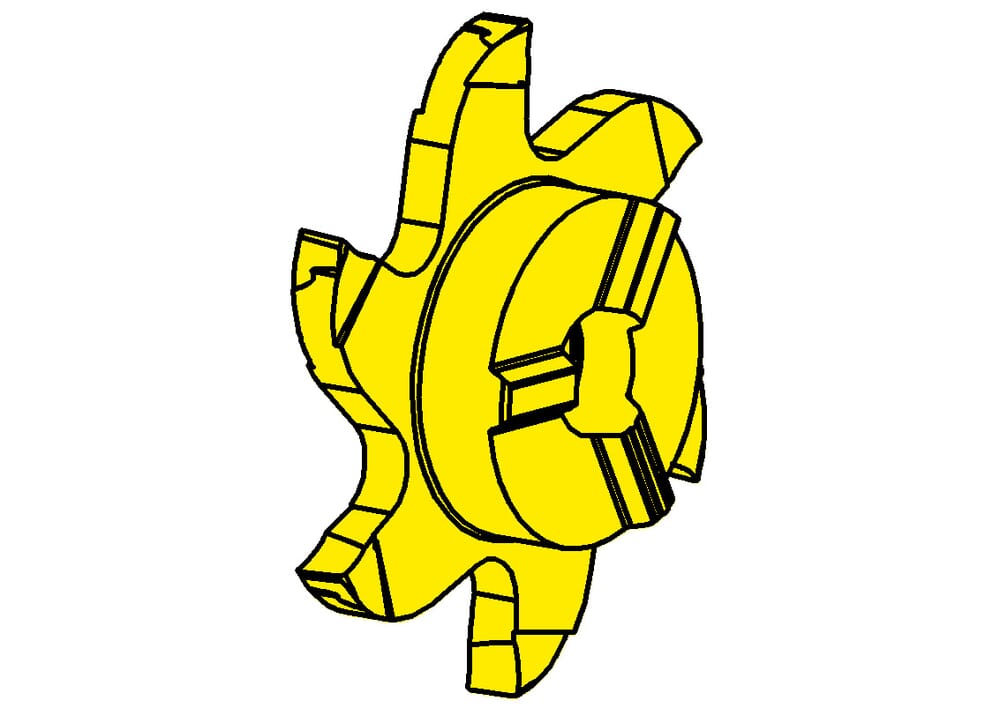

HORN insert 628.0400.00 TH35 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
Maximum milling depth/ depth of groove (tmax)
6.5
mm
Width of groove (w)
4
mm
plating-seat-size
0
Katalog_SSC
328143R
DIN_SSC
HORN32814384R
ISO_SSC
HORN328143$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
27.7
mm
| Downloads | |
|---|---|
| 628040000_20230112_152250250.STP | Download |
| 628040000_20210625_160941868.DXF | Download |
| Download all files | |
