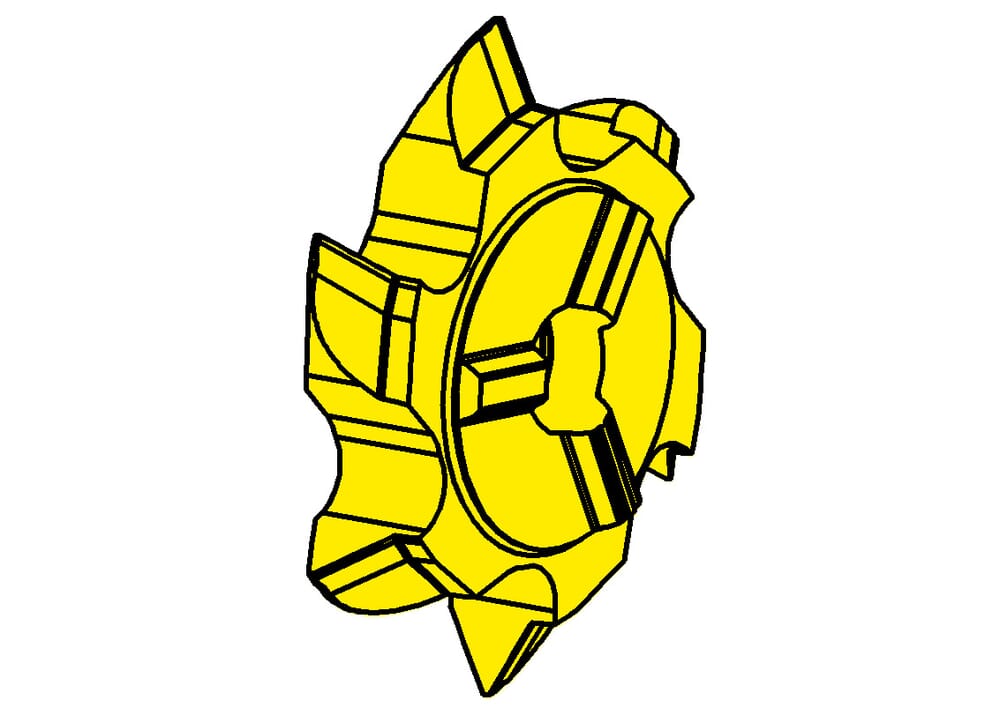

628.3050.01 TI25
Inserts
Part number 628305001TI25
HORN Inserts 628.3050.01 TI25 Gewinden
Please note:Technical instructions
Maximum pitch (Pmax)
5
mm
Cutting diameter (Ds)
27.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN328114$84R$$$$$
DIN_SSC
HORN32811484R
Katalog_SSC
328114R
Setting length (E)
3.7
mm
Cutting insert height, Cutting insert thickness (s)
5.75
mm
Pitch (P)
3
mm
| Downloads | |
|---|---|
| 628305001_20210630_095618477.STP | Download |
| 628305001_20210627_105314329.DXF | Download |
| Download all files | |
