628.5060.01 TI25
Inserts
Part number 628506001TI25

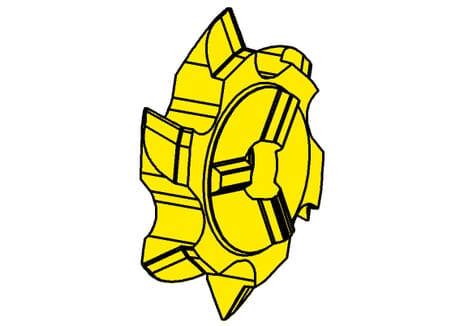

HORN Inserts 628.5060.01 TI25 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
27.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN328143$84R$$$$$
Katalog_SSC
328143R
Setting length (E)
3.2
mm
Cutting insert height, Cutting insert thickness (s)
5.75
mm
Pitch (P)
5
mm
Maximum pitch (Pmax)
6
mm
| Downloads | |
|---|---|
| 628_5060_01_TI25-ISO.XML | Download |
| 628_5060_01_TI25-DXF.DXF | Download |
| 628_5060_01_TI25-STP.STP | Download |
| 628_5060_01_TI25-DIN.XML | Download |
| Download all files | |
