628.6060.05 EG55

Insert

Part number 628606005EG55

HORN Insert 628.6060.05 EG55 for Milling

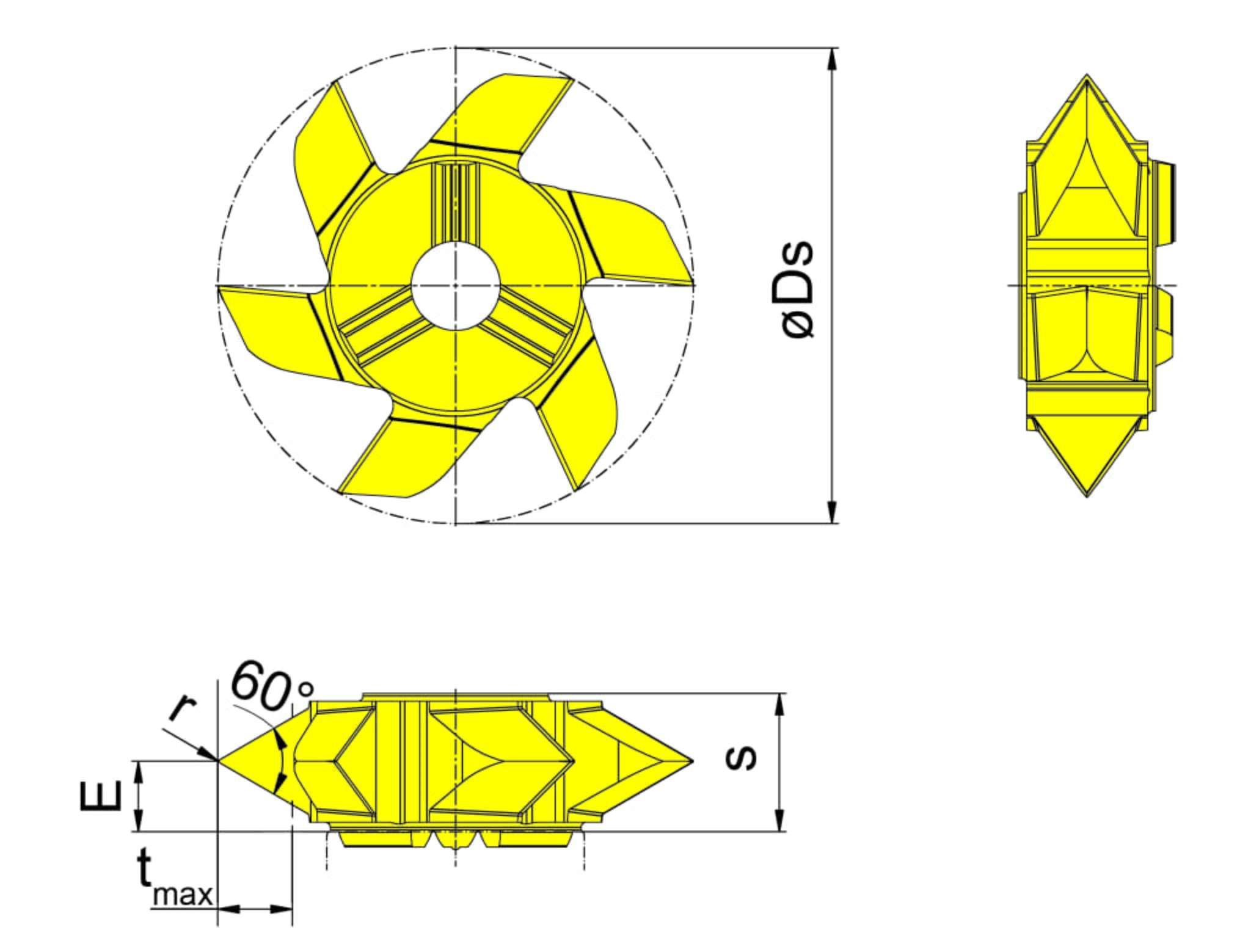

Cutting diameter (Ds)

27.7 mm

Number of teeth (Z)

6 St.

Top radius (r)

0.05 mm

ISO_SSC

HORN328090$84R$$$$$

DIN_SSC

HORN32811484R

Katalog_SSC

328143R

Cutting insert thickness, setting length complete (s)

8.05 mm

Setting length (E)

4.1 mm

Chamfer size (tmax)

5 mm
