632.0015.30 AS45

insert

Part number 632001530AS45

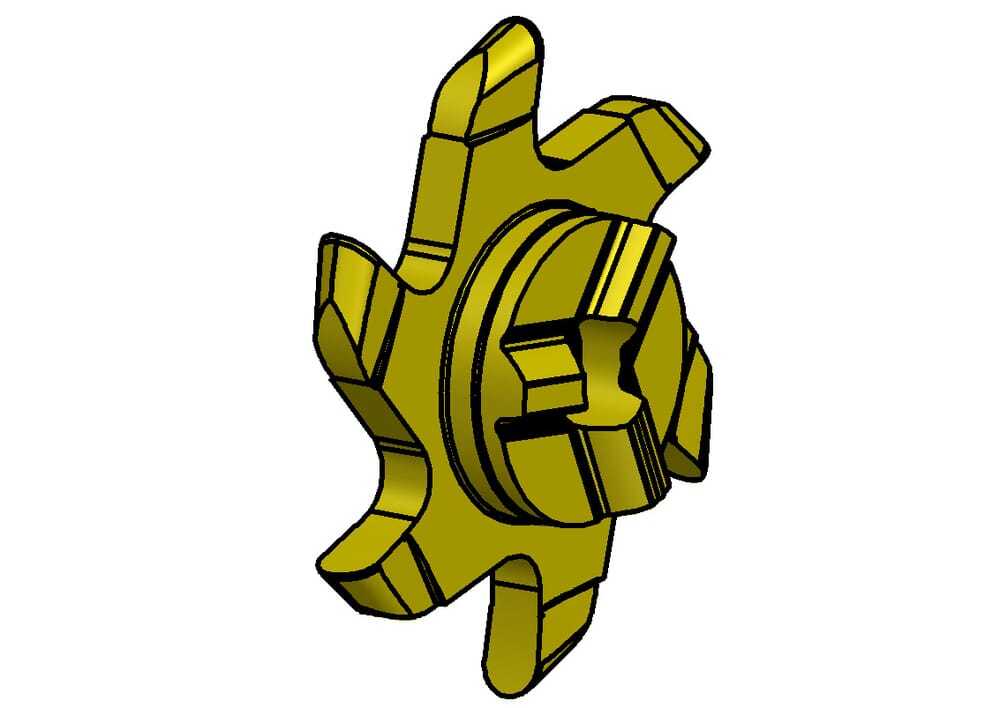

HORN insert 632.0015.30 AS45 for Milling

Cutting diameter (Ds)

31.7 mm

Number of teeth (Z)

6 St.

eclass-shortcut

21-18-20-11

ISO_SSC

HORN332143$84R$$$$$

DIN_SSC

HORN-33214384R

Katalog_SSC

332143R

Width of groove (w)

3 mm

Maximum milling depth/ depth of groove (tmax)

8.3 mm

Cutting insert thickness, setting length complete (s)

6.1 mm

Radius, full-radius (r)

1.5 mm
